Hi Everyone,

It’s been a while since I had a gear post, but I thought I’d put up a quick update that some of you might find interesting.

And besides – what guitar player doesn’t like gear (or reading about gear?)

That Muse Of Guitar

The Guitar-Muse posts are on a bit of a hiatus for the moment, but I did a short series for them about the evolution of my live rig and getting it down to something manageable for travel.  You can read those posts below:

Part 1

Part 2

Part 3

Part 4

I never got to do part 5 or 6, but for people that are interested here’s some of the things I make sound with now (and it may be something you can apply to your own live rigs):

Electric – The Exonerated

As part of the Buck Moon Arts Festival, I volunteered to do live accompaniment for a staged reading of the play, The Exonerated.  The play called for a Slingblade/Daniel Lanois sparse type of accompaniment.  As the drummer I wanted to work with wasn’t available, I brought my full rig and laptop.

Live Rig

Can improvise, arrange and mix multiple audio signals for a live show. Can not shoot a picture in focus.

What you’ll find here:

  • FnH Guitar (not pictured) being played with picks, slide and ebow running into
  • Nady TD-1 (with 12AU7) going into a
  • POD 500X HD
  • (there’s an additional expression pedal as well) running the effects send into a
  • Torpedo C.A.B. and running that out to a
  • QSC K-8 speaker.

The laptop is running Logic Audio/Absynth and a few other apps and I’m triggering sounds and loops with the Korg Nano Key.  The audio leaves my headphone jack and goes into the 1/8″ input of the POD.

Perhaps you noticed the white Zip Ties….I tried using just the Velcro on the PedalTrain and when I opened the bag, all the pedals were pulled off the board and on the bottom of the bag.  I went to the hardware store and got the longest ZIP ties I could to hold everything down and all was right with the world.  A dedicated power supply for everything would be nice, but as that would require having the power input completely re-wired on the TD-1, that’s on a back burner for now.

I really dig the Scuffham amps S-Gear, so if I could have gotten the Scuffham amps and SooperLooper plug in in AU Lab to play nice with the Line 6 USB shortboard I might have just brought the Apogee Duet, laptop and shortboard.

But my laptop isn’t getting any younger and a new laptop is out of the budget right now so rig B right now is my iPhone, Sonic Port, Positive Grid, Audio Bus and Loopy HD.  I dig the loop features a lot and if the AirTurn BT-105-PB4 works the way I think it will I might be able to make it one of my default live rigs.

Having said that, the POD rig does a LOT of things really well and while I like the Positive grid guitar tones, in its current incarnation it can’t touch the POD for non-guitaristic tones (i.e. the weird stuff – i.e. the good stuff).  Using a RADIAL splitter and a SONUUS i2M to allow the guitar to be a MIDI controller is also something I’ve experimented with before and will come back to.  Again – it depends on the consistency of the laptop.

I also have a ZT junior amp, which I really dig and I’ve done a couple of background music gigs that just required showing up with a small amp.  For a straight jazz, country or for just a warm clean tone in small settings it’s my go-to.

Acoustic Tone

The last set up on my Tam Hiep made it borderline unplayable due to a sympathetic vibration on the low E string.  File that under substantial repairs/bummer.

In the meantime, since I don’t want to gig with my Jeff Chappel guitar – I’ve gone back to Yamaha APX’s for live use.  I have an APX700 12 string that I’m using for more Dastgah/Maqam type things with a B-F#-B-F#-B-F# tuning.  Right now I have it set up for octave tuning but will likely use the same adaptations I used on the Rogue (i.e. making it a 10 string with unison strings on the D and G strings.

I’m keeping an eye out for another APX700ii, 700 or 500ii.  The Yamaha and the BT-105 are the last anticipated gear purchases for quite a while but we’ll see what happens.

In terms of amps and effects.  It depends on the situation but the Yamaha AG-Stomp does everything I could ask it to do in a live setting and a ZT Acoustic lunchbox is arriving via UPS today and I anticipate that that will solve any live need I could possibly have.

That’s it for now!



FnH Interview Online and other Guest Blogging

Posted on by
Reply

Hey all – a couple of brief news things:

.

1.  My interview with FNH Guitars is now live on Live4Guitar, a very cool guitar blog with a paid lesson service as well.  I’m going to be posting some lessons and additional content there fairly regularly, so check back here or at Live4Guitar.

.

2.  I’ve also taken on a new weekly column for Guitar-Muse.com, that will be a 10 questions with various builders, players and tech people.  I’m in the process of lining some cool people up – but wanted to get your feedback as well.  The first person on the block is Jonathan Wilson who’s doing incredible work making bowed guitars in SoCal (check out some of the awesomeness on the Togaman GuitarViol site).  Update: This interview is now online, you can read all about it here.

.

I’ve also got interviews with FnH Guitars, Jack Sanders and a couple of other people lined up.  But I’m interested to see who you dear readers, would like to read about.  If you could take a second to just put a name or a company name in the survey, it would be very helpful.

Click here to put your request in

.

Thanks for reading!

-SC

Hardware vs. Software – Or Praises And Perils In Live Laptop Use

Posted on by
2

Before I drag this article kicking and screaming down the bloody cobblestones of memory lane, I’ll mention that the kick off for this post was a recent effort to stabilize my laptop rig.

.

A couple of months ago I found out that the 4 gig chip that my laptop would support had come down in price.  This would allow me to max out my elder laptop at 6 gigs instead of the current 4.  I surmised that had to improve performance overall.

After saving up some cash – I ordered the chip from OWC.  It came very quickly and installation was a snap.  I turned on the laptop and seeing the memory say 6GB – was thrilled for about a ½ hour.

.

At that point, the laptop screen did a big wipe down and I got an error message of death – you need to shut off your laptop, which I did.  It powered back up and 10 minutes later did the same thing.  I took out the memory and added the old memory back and everything worked fine.  I contacted OWC – they had me try a few things, and then sent me an RMA so I could send it back for free.  The promptly sent me another chip.

.

I got that chip in the mail on Monday.  I installed it in my laptop and everything was fine.  I ran it all day and there were no issues.  I got it home and was streaming a video while I was working out and sure enough about an hour in the laptop screen did a big wipe down and I got an error message of death – you need to shut off your laptop, which I did.  This time however, when I turned off the laptop, I felt underneath it – I had the laptop elevated to get it some air to help cool it down, but even so – it was still hot enough that you could fry an egg on it.  I set the laptop on its side to cool it down and once the back was cool to the touch – maybe a couple of minutes later – started it up and it’s been working fine ever since.  I think it was the combination of the poor airflow and table lamps I have to increase the lighting. I’ll have to go to staples now and get one of those self cooling USB fan jobs and hope it doesn’t mess with the audio signal.  But it was an important reminder about the precarious nature of laptops as signal processors.   The reason I was trying this in advance was because at the next gig I have, I don’t want the laptop to shut down mid song and leave me stranded.

All of this got me rethinking the laptop vs hardware debate that I partially discussed here but is worth a broader examination.

.

The obligatory history lesson to stave off initial pointed questions of, “Do you even know what that stuff is supposed to sound like?”

As with many of the things I do, my entry into laptop guitar was completely unplanned, but in retrospect not that surprising.

When I first started playing guitar, the amp I had was a no frills, no name combo amp with a 12” speaker.  Given my influences at the time (Hendrix, Sabbath, Ozzy, etc.), it’s no surprise that almost immediately I started looking for distortion.  Then every dollar I could put together was going for other effects: wahs…chorus….delays… anything I could get my hand on to try to replicate those sounds.

When I was playing in the Committee of Public Safety (my avant-garde core French Revolution fixated band with voice, guitar, bass, cello and drums) – my signal chain was really small.  I had a Marshall JCM800 50 watt combo amp with a single 12 (this was run through a 4×12 Marshall 1960A cab).  I had a channel switcher for the amp, a volume pedal and a TC Distortion/Boost pedal.  The committee lead tone was the TC preamp before the Marshall distortion channel – and it was a creamy tone.  I want to say there was some kind of cheap delay in there as well (maybe an Arion), and from what I remember  that was it.

The Marshall got stolen from a rehearsal space in Allston while I was trying to resurrect mach 2 of the Committee.  The stolen amp was my cue from the universe that it was time to move onto another project.  In the meantime, something interesting started happening.  The more I got into pedals, the more I started getting into sounds that didn’t sound like the tones I was initially trying to emulate.  Soon the more a pedal disguised the fact that I was playing a guitar, the more I wanted that pedal.

At the time, I was working at a music store and an Ampeg guitar amp came in, and I got it for a super low price.  I started picking up some EH pedals at the time as well (including a really sweet 1st generation Russian Big Muff Pi), and I found an old tube echoplex.  I remember playing a gig and the sound man took a look at my pedals and said, “Wow – this would be a state of the art rig in like ’72.”  It was meant as a dig, but I took it as a compliment.  The rig had character, the tones were right there and it sounded as guitaristic (or non guitaristic) as I wanted it to.  That amp eventually gave way to amps by Seymour Duncan and Gibson before settling on a 4×10 Hot Rod DeVille (really a pretty great sounding amp with some mods by Tom at AzTech Electronics).

In between a lot of other pedals and effects crossed my path. This included a 1st generation Jam Man (with additional memory slotted in which really turned my head around) and eventually sold, a Rhythm and Sound (also sold), various distortions wahs and other filters.   By the time I was playing in Visible Inc (and later in The Bentmen/Tubtime/One Of Us) – my full rig was a tuner, Ernie Ball Volume Pedal, Digitech Space Station, T.C. Electronics Chorus, Memory Man Delay (original), Guyatone MD-2 delay, Akai Headrush looper, Vox Wah and another Ernie Ball volume pedal that went into the front end of a Fender Hot Rod Deville (4×10 amp).   The full rig sat in an 88 key keyboard flight case that would not fit width wise across my car seats.

During all of this, I was constantly investigating different digital options.  I had the original zoom effect that I used for quite a while, and when the line 6 came out – I remember getting a used 2.0 bean and just being blown away at the flexibility of it.  Even later – my B-rig (and the one I used primarily with Annette Farrington) was the pod bean with a line 6 pedal board, the looper, wah and volume pedal.  (Later in a cover band – it was only the Pod 2.0 in front of the amp). And that rig sounded pretty damn good in front of my amp.  Even the band’s sound guy went from dismissive to begrudging concession.  It really didn’t sound AS good as the full board – it sounded different – but it worked and it was a hell of a lot less stuff to bring than a huge pedal board.

This is all mentioned because about a month before I left Boston to go to CalArts, my rig was stolen out of an uninsured rehearsal space.  The only thing I had taken home with me was the space station and the Akai Headrush – the amp and all the rest of the pedals were gone.  The band hadn’t been rehearsing for a while so I had no idea anything was missing until a month later.  By then there wasn’t much of anything to do – but leave Boston and start what would now be my acoustic studies at CalArts.

My first year at CalArts, my wife got me a Pod XT for a Christmas gift – and that was my ticket back on the crazy train of gear.  But back when I was rocking a G3 ibook – I remember thinking that someday I’d be able to get guitar tones from a laptop.  The day would come that I’d be able to bring a guitar and a laptop and leave all those pedals behind.  And now I can say – that day is partially here.

Computer guitar tones are the best they’ve ever been, but there are a number of issues big and small that I think need to be acknowledged.

1.        Laptops do not sound like tube amps.  They just don’t.  Even running a laptop with a Marshall patch through a tube amp – doesn’t sound like a Marshall.   Having said that,  it doesn’t sound bad.  In fact, it sounds pretty damn good.  What laptops have all over traditional amps and pedals is flexibility and portability.  Knowing that I can bring a laptop and a guitar and (if the venue has a PA) get through a live show makes touring a LOT easier for me.

2.       Pedals don’t often break – but when they do – they can be bypassed and the amp still used.  The downside is that when the laptop goes down – you’re done.  I’ve never ever had a hardware POD breakdown at a show (other than one time when the venue lost stage power and ALL the amps (and PA) lost power.  I have had laptop programs crash mid set and it’s very nerve-wracking in a live context in the best situations.  In the worst situation – the show’s over.

Laptops are fragile and pedals are built for durability.  I don’t have to worry a well-built pedal getting ruined at a show (unless someone pours their beer on it) – but any one of a number of things could be the end of my laptop.

3.  The technological barrier to true emulation will be cracked.  The news of the new Thunderbolt protocol in mac books is stunning to me.  12x faster than firewire 800?  At a certain point the algorithms will be improved enough, the data transfer rate and processing power will be so high – that you will no longer be able to tell if something was recorded on tape or not.  You will no longer be able to tell if that’s a real tube amp you’re playing through.  It isn’t a question of if it will happen – only when – and honestly I think we’re only about 5-10 years away at the most.

4.  Emulation allows for sounds not feasible in the real world.  Do I want to get an idea of what running a guitar through 6 tube echoplexes sounds like?  Digitally? No Problem.  In the real world – you’d have to first find 6 working tube echoplex units – and the hiss would be unusable, trust me on that one.

If you’re planning on using a laptop live – here are some suggestions I have for you

1.  Optimize it.

  • From the get go, get the fastest processor, maximum memory and fastest hard drive you can afford initially. It doesn’t have to be the latest and greatest – it just needs to be relatively fast and expandable.  For my live looping rig I have a 2-year old Macbook Pro (2.4 gig Intel Core Duo) with 6 gigs of memory and an internal 7200 rpm drive.  I bought it with 2 gigs of ram and a 5400 rpm drive .  My initial upgrade was 4 gigs of memory and a 200 gig 7200 rpm drive as that’s what I could afford at the time.  The first time I looked at a 4 gig chip the cost was $150.  The one I just installed to get the machine to 6 gig was around $90.
  • As time goes on (and costs decrease) plan on upgrading when necessary.


  • Count on needing an external drive if you’re going to do any recording.


  • Defrag your drives – frequently. When I went from the 200 gig drive to the 500 gig drive I defragged it during the drive cloning and my system speed increase was about 30%.  It makes a big difference.

2.  Back it up.

The first time you lose all your data – you will know how important this is.  I’m especially bad at this as well and only back up once a week or so.  A hard drive is a very delicate thing.  If you knew you easily it lost information, you would lose sleep at night.

3.  Make Multiple patches and back them up as well.

Patches take up almost no drive space.  I probably have 40-50 different AU Lab settings.  The reason for this is that AU LAB remembers all of the patch parameters as you save them.  So if, for example, you finally optimize your work flow and settings and accidentally close the mixer window and save it when you close out  –  that window is gone when you reopen it – and there isn’t  a way to recall it.  What that leaves is no way to change parameters, levels etc.  In other words – you start from scratch.  I do this with POD FARM patches as well (multiple variants of tones so if I can call up parameters at will), SooperLooper, Apogee Maestro and FBV preferences as well.  Hugely helpful in sessions – believe me.

3.  Related to #2 and 3 – organize your folders and label them logically.

In working on my book, you would be amazed at the amount of time lost digging through folders with vague titles looking for old graphics.  All my patches are in one place and backed up to a flash drive.

4.  To the extent you can – run real world tests before going live.

If the stage has hot lights on it, it’s going to be doubly warm for your laptop – will it operate correctly in a live context.  In a related note, record yourself when you’re playing and check levels etc.  As I’ve said before, there’s a substantial difference in sounds that work when your practicing with headphones, sounds that work at low volumes and concert level sounds.  The more prepared you are, the easier it will be to keep it all together.

5.  Keep it compact

Typically in live performance you won’t have an hour to set stuff up.  5-10 minutes is optimal.  To the extent that you can, try to pre-cable all of your connections.  Don’t assume that the venue will have clean, continual power.  I have a surge protector built into my strip – it’s not ideal but it’s better than nothing.

6.  Go with the highest resolution your system will handle.

SooperLooper freaks out when I run anything higher than 44.1k – so if I’m looping – everything runs 44.1.  If I’m not looping everything runs 88.2, or 96k.  The clean sounds have more definition and the dirty sounds are a whole different ball game at 88.2 vs 44.1.  Again, this is where having multiple AU patches comes in handy.

7.  Be flexible.

Have a backup plan when things go wrong.  In a worse case scenario where the laptop completely fails – I can go directly into the amp and get a signal.  There won’t be any effects, but at least I don’t have to stop playing while it gets sussed out.

8.  Be calm.

This took a while for me to get my head around.  The problem with getting freaked out – is that it just exacerbates the situation as typically it leads to bad decisions which leads to more freaking out.  The more you can calmly assess what’s going wrong, the more quickly you’ll be able to solve the problem.

9.  Bring Extras.

I bring a trouble shooting pack to every gig it consists of:

  • duct tape – to tape down cables/or hold things together if need be.
  • a mag light – things get lost on stage very easily.
  • a small tool bag with screwdrivers, pliers and a wrench
  • a black magic marker and post its – in case I need to make any patch changes, write up set lists, etc
  • 9 volt batteries (for my ebow – also for my back up tuner)
  • strings and a string winder
  • back up usb and firewire cables
  • an extension cord
  • a flash drive with back up patches for everything

10.  Bring your A game.

Stage presence is a difficult thing to bring to a laptop performance, but to the extent that you can – show that you’re engaged (or at least don’t look bored/frightened) and come out from your laptop once in a while.  If it’s engaging for the audience, it’s going to make the performance go easier for you as well.

Thanks for reading!

-SC

The Baker’s Dozen Approach To Pentatonic Scales

Posted on by
Reply

6 for the price of 5

While pentatonics are a great melodic and harmonic device, slipping some extra notes into the scale can add some additional spice to the  approach.  The most common way to do this is through the method used in the blues scale – which is a pentatonic minor scale with an added note (in the case of the blues scale – a tritone).

The impetus for posting on this was a post my friend Moby Pomerance put up regarding some elements of this very topic.  Originally I had devised an alternate (i.e. approximate) fingering for his idea – but ultimately I put a few twists and turns in it and came up with one lick that’s really three mini licks rolled into one.

First – The Scale

Here’s a “box” position D pentatonic minor scale as a starting point:

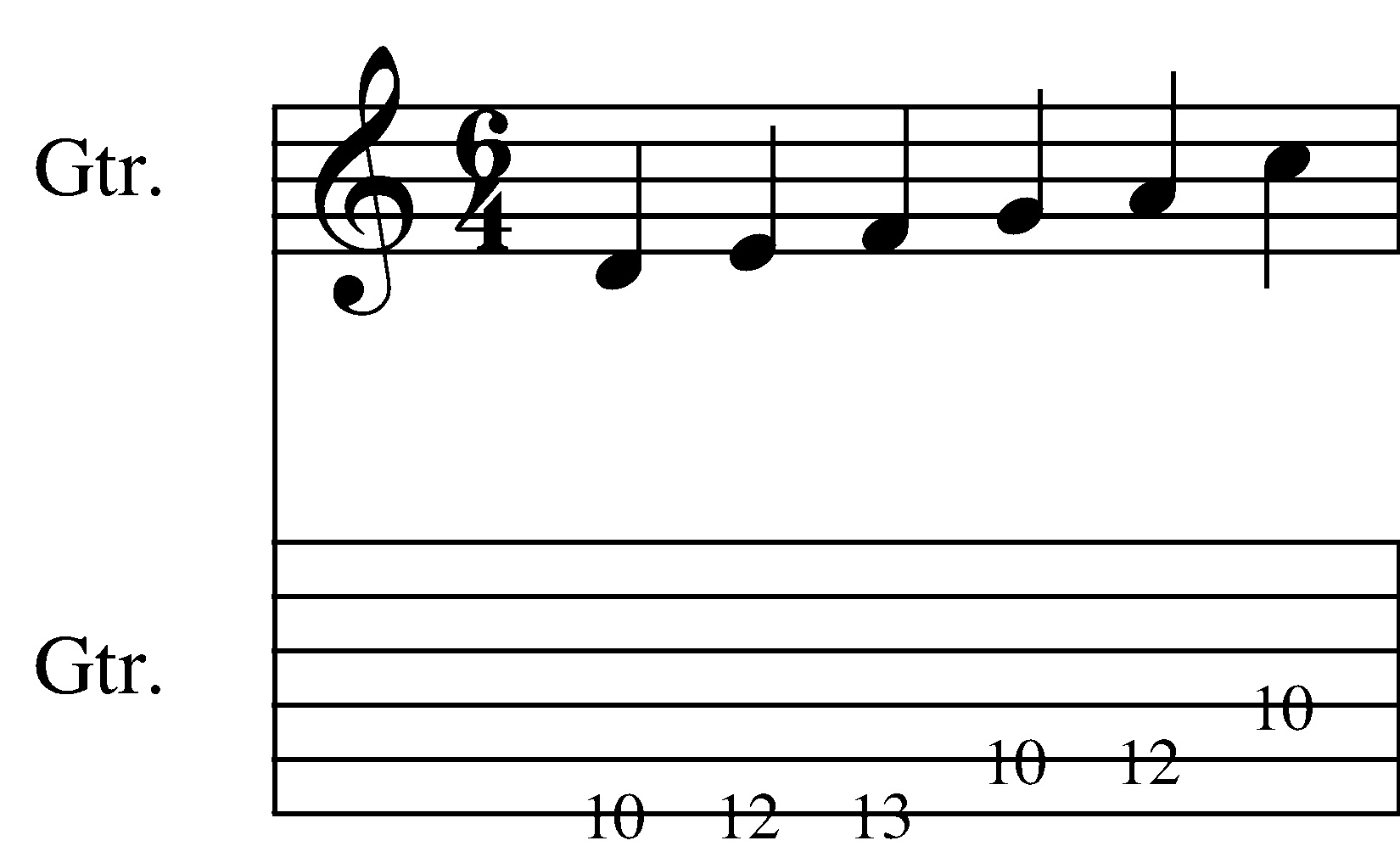

What I’m going to do is add in a 9th (e) for an additional flavor

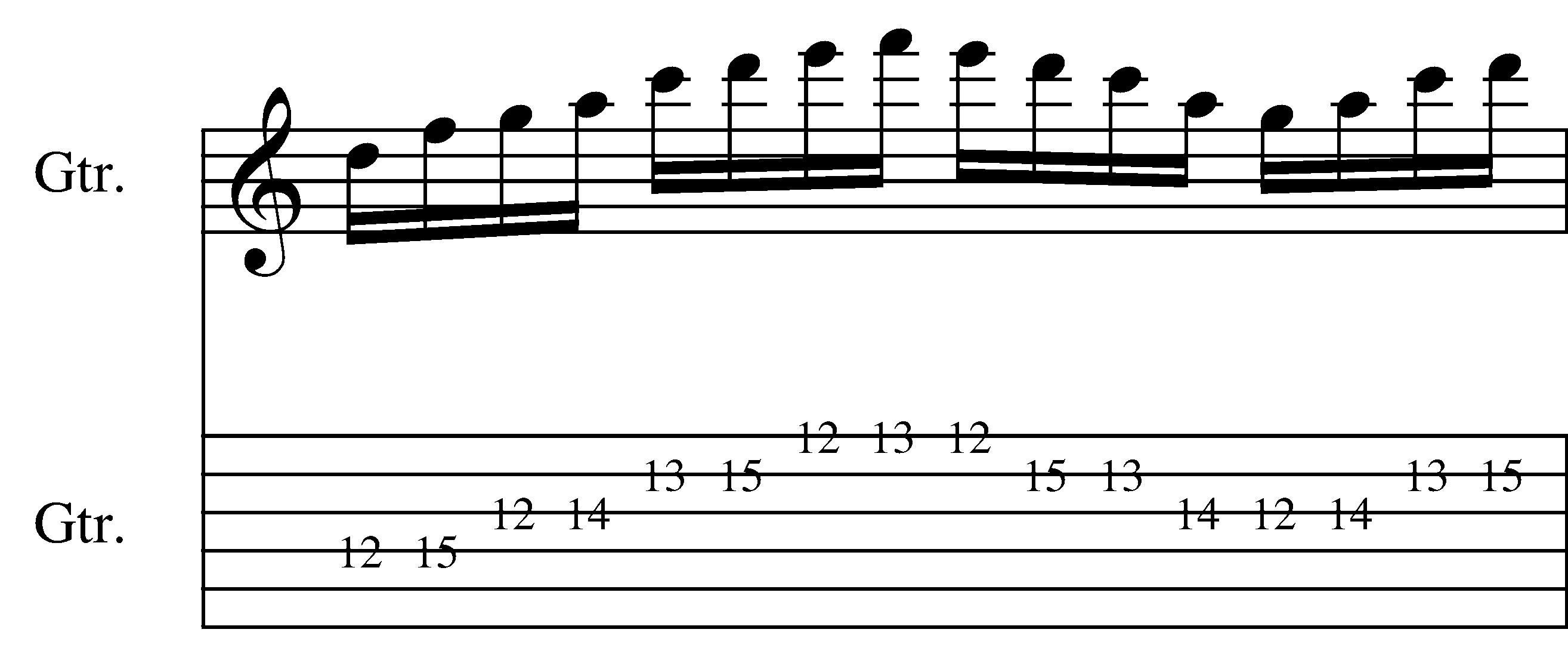

If I put this in a 2 note per string pattern using the D on the D string 12th fret as a starting point, I get this fingering ascending and descending. (Use alternate picking with this lick.)

While there’s nothing wrong with fingering it this way, I like dividing it into 3 string groupings.  The 2-note-per-string approach with alternate picking is more aggressive – but the dividing the notes per string into grouping of 3-1-3 on the g-high e strings is a little more legato makes it easier for me to sequence sections.  So here is the same idea but moved to the 7th/8th position.

Pay careful attention to the picking pattern and the 4th finger.  The slide is indicated here to accent the pinky movement. While it’s picked in this example, it could also be played with only the first pick attack.

The lick

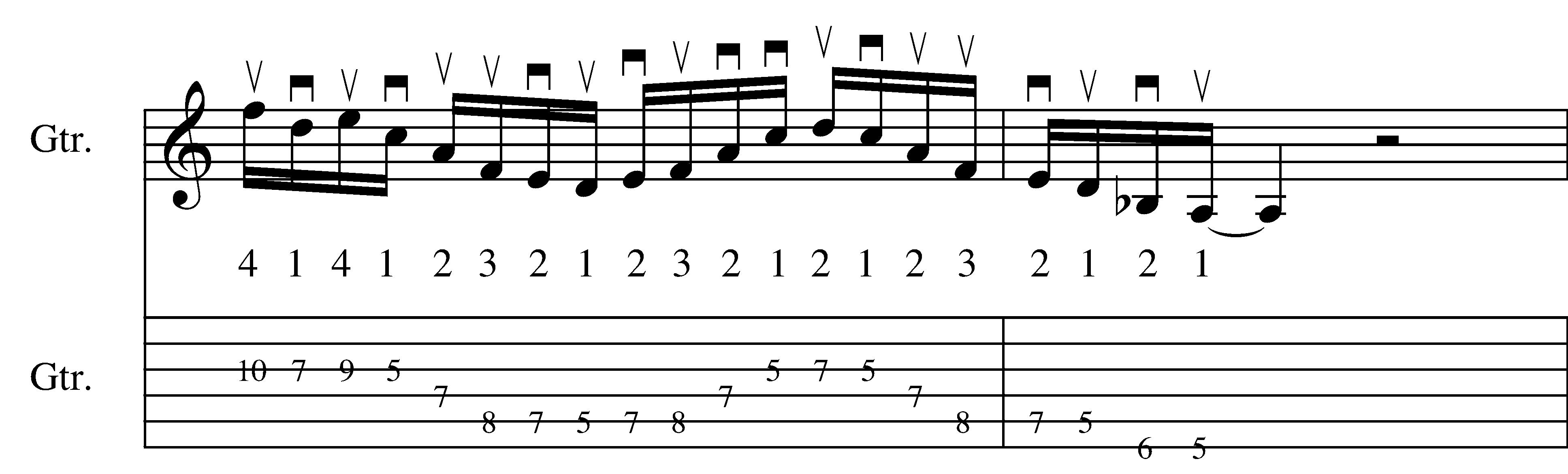

This idea is presented below in a larger lick that works over a d minor/d min7/d min9 chord.    Here’s an mp3 I recorded with the FNH Guitar  in AU Lab- first played slow (1/2 time) then faster (full speed – tempo is around 200).

** Note – the mp3 player on the site seems to be working better in Safari – but if you have trouble playing it – just refresh the page.


Notes:

  • The picking may seem idiosyncratic – but the approach is based on sweeping individual notes on multiple strings and alternate picking for notes on the same string.  You should find it consistent in that regard.
  • I see this as 3 licks.  Bar 1 is one approach.  The 1st two descending ideas in bar 2 as the second approach and the last 2 arpeggio ideas as the 3rd lick.
  • The note groupings are not all uniform.  Bar 2 has groups of 6 and 7 and splits a group of 5 up between bars 2 and three. .  Breaking out of rigid 4 note 1/16th note patterns adds an element of unpredictability .
  • There are a number of e-f slides to highlight the added note in this lick.  This is done with the idea of breaking the lick into segments rather than just using them in the lick as a whole.
  • Using patterns that have only 1 note on the B string – can make for some interesting chord ideas as well.  Here are some melodic fragments that can double as substitution chords over a d minor chord (with an mp3 here).

Lastly, examining the notes in this scale: D,E, F, G, A, C  as unique triads reveals the following:

D, F, A (d minor) + C, E, G (c major)

in other words – to get away from the full-scale approach – you could alternate D minor and C major arpeggios and get a very similar effect.  I’ll look at this more in a future lesson.

In the meantime, if this idea is interesting to you – you may also want to look at this GuitArchitecture lesson post, or look at the pdfs of the pentatonic posts in the online lesson (PDFs) tab on the top of the page.

I’m always looking for feedback.  If there’s anything in this lesson that helps, or that raises other questions – feel free to drop me a line at guitar.blueprint@gmail.com.

Thanks for reading!

-SC

.

Home For The Holidays – Gator Viper Gig Bag Review

Posted on by
Reply

Gator Viper Gig Bag

With the acquisition of my new Schecter 8 string, I realized that I would need to get a new gig bag to go with it.  After some searching –  I found the Gator Viper Gig bag. The bag lists at $149 and usually sells for $100 but Amazon had it listed for $37-$39 (as of this writing J&R music is selling it for $39.99 shipped via amazon).

I picked one up and just had Santa get me another one for Christmas.

Here’s the bag:

The Exterior

First and foremost – This is a rugged bag.  It’s almost more like a case than a gig bag.  I was surprised that it was heavier than I though it would be when I picked it up.  The zippers are larger than the ones used on other bags I have.  They’re luggage quality and seem durable.  The ad copy mentions that the bag is dual lined for protection and I believe that.  I would have no worries about this bag protecting the guitar in any kind of rain/snow/ condition.

If you look at the back of the bag:

you might notice that the two straps are padded for comfort.  There’s an optional sternum strap for stability as well.  The bag also features back cushions:

which help distribute the weight.  If you want to carry it by hand – the handle is reinforced.

The Interior

If you look at the headstock interior (quilted foam):

In addition to the heavy padding around the back and sides – you also get a neck rest.  The additional string guard on the head stock and the bridge:

is a nice touch as well.

The interior has what the company calls a “Universal ergo-fit design for most Strat- and LP-style guitars” – my non traditional shaped FNH Guitar fits in there fine.  The Schecter with a 26.5″ scale fits in the bag as well.

The bag has two compartments ( It’s hard to see in this photo – but there is a separate zippered section by the headstock which could easily hold picks, string, capos, etc.)

In addition to the front zippered section, the front pocket is spacious.  I can easily fit these full size headphones in the case with no issue.

For $30 more you can get a model with a separate laptop compartment.  I like the idea a lot – but it adds additional weight to the front of the bag.

The Sum Up

The short of it is – this is one of the best deals out there. Given that a garbage gig bag will probably set you back $20-$30 it’s impressive what you’re getting in this bag for a few dollars more.

Happy Holidays!

-SC

Rough Hewn Trio – Some Live Excerpts

Posted on by
Reply

The Rough Hewn Trio –  an instrumental trio consisting of Chris Lavender on Warr guitar, Craig Bunch on drums and myself on guitar are getting back into the rehearsal cycle and gearing up for some shows this spring.  To get a feel for what the shows will be like here are some live excerpts from some improvisations we did this fall.  The live sets – will include a combination of pre-composed and improvised material.

For those of you who are interested – this session is all drums and laptops.  I’m running Pod Farm and Sooperlooper and Chris is using Guitar Rig. (an amp was used to re-amp the guitar in 1C – which had some gnarly digital distortion tho…)

Note:

mp3 playback is sometimes a little glitchy in Safari.  If it doesn’t play in your web browser – you may just have to reload/refresh the playback page.

Enjoy!

-SC

Improv 2b

Improv 2a

Improv 1c

GuitArchitecture, Sonic Visualization And A Pentatonic Approach For The Holidays

Posted on by
3

Happy Holidays!

.

I know I’ve been posting a lot of gear related items lately – and  based on the statistics for site visits – this seems to be what people are primarily interested in – so this has driven the posting content recently.

While I’m happy to blog about gear (not incidentally, my 8 string Bare Knuckle Cold Sweat pickup came in last night and I squealed like Bobby Hill); I don’t want to get too far away from playing.  With that in mind I’m putting a concentrated effort to get more lesson/performance posts up to rebalance the site a bit.

I’ll have a new  chord-scale lesson up next week but in the meantime wanted to explain my performance/pedagogical approach to navigating the fingerboard with a fleet fingered pentatonic lick (yes, it’s reposted – but just like Thanksgiving leftovers – aren’t they still good on day two?).

.

GuitArchitecture?  Sonic Visualization?

.

I wanted to take a moment and talk a little about GuitArchitecture, sonic visualization and re-examine a chestnut from the lesson page as a little – three for the price of one post.

In broad strokes, the GuitArchitecture concept is that the nature of the guitar’s fretboard and tuning lends itself to visualizing fingering patterns.

While patterns performed mindlessly can be a bad thing, they allow people to realize ideas more readily.

Through these patterns, musical structures can be realized and worked into larger sonic arrangements.  More importantly, patterns can be associated with sounds and visualizing how to realize a sound by seeing its shape on the fretboard makes performing it easier.  Hence the term Sonic Visualization.

In my forthcoming books – I have a lot of information on this topic as it applies to scales.  When approaching scales – I see them as a series of modular two-string patterns that connect the entire fingerboard.

.

The GuitArchitecture Approach

.

Here’s an applied example of sonic visualization:

Let’s say I’m playing a solo over an E minor chord.  As mentioned in a previous post – when soloing over a minor chord you can substitute a minor chord a 5th away (in this case B minor).

So if I’m thinking of using E pentatonic minor over the chord (E, G, A, B, D) I can also use B pentatonic minor (B, D, E, F#, A).

If you look carefully – you’ll see the only difference between the two is the F# and the G.   Both notes sound good against E minor, so if we combine them we get a six- note scale (E, F#, G, A, B, D).  Here is a sample fingering of the combined scales in the 12th position.

.

If that scale were fingered as a 2-string scale instead of a six- string box pattern – the same fingering pattern can be moved in octaves – thus eliminating the need for multiple fingerings. (This is the same approach I’m using on 8 string guitar btw).

Here is an mp3 (note mp3s are a little glitchy in Safari – if it doesn’t play you may just have to reload the page) and notation/tab for the descending scale:

.

Sextuplet descending

.

.

* Fingering Note: I finger both patterns with the 1, 2 and 4 fret hand fingers on both string sets.

* Descending Picking Note: I play this with a modified sweep picking pattern

E string: up-down-up

B string: up-down-up

.

The picking pattern is the same for each string – but when I switch strings – it’s two up picks in a row.

Here it is  ascending:

Sextuplet Ascending

.

* Ascending Picking Note: I also play this with a modified sweep picking pattern

.

E string: down-up-down

A string: down-up-down

.

The picking pattern is the same for each string – but when I switch strings – its two down picks in a row.

If you’re used to alternate picking  – you can use that approach as well but I try to apply the same picking pattern to all three-note per string patterns.

.

Practicing the pattern

.

In addition to focusing on the timing of the notes – it’s very important to practice slowly and only increase speed when both the timing (are all the notes being played with rhythmic equivalence?), tone (i.e. can you hear all of the notes clearly?) and hand tension (is your hand should be as relaxed as possible?) are all working together.

I’ve written a whole series of posts on practicing  (Post 1, post 2, post 3, post 4, post 5, post 6 and post 7) that I’d recommend checking out if you haven’t already done so – but the simple principle here is to pay attention to what I call the 3 T’s in Performance: Timing, Tone Production and Tension.

This particular approach is challenging – particularly if you’re not used to the stretch.  Just remember to practice in small focused increments and try to increase steadily over time.

.

The Tones:

.

For those of you who are interested, tone on this recording was the same AU Lab/Apogee/FNH combination that I detailed here:

Here’s a screen shot of the Pod Farm setting (The tone can be downloaded from line 6 here):

.

That’s all for now

.

I hope this helps!  You’re free to download and distribute any of the lessons here but I maintain the copyright on the material.

I’m always looking for feedback on what people find useful and what they don’t so if you have any questions or comments, please feel free to e-mail me at guitar.blueprint@gmail.com

Steinberger Gearless Tuners – Review

Posted on by
17

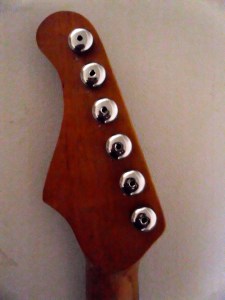

Steinberger Tuners:


In a previous post, I had mentioned how the high E string was slipping a bit on my electric guitar.  After lubricating the nut, I decided to bite the bullet and give a set of Steinberger gearless tuners a try.

Tuners and Gear Ratios:

Typically guitar tuners operate with a gear mechanism.  If you see a gear ratio that says it’s 12:1 – that means it takes 12 turns of the tuner knob to rotate the post 1 complete turn.  The higher the gear ratio is, the more accurate the tuning.  What happens with really low  tuning ratios is that you can sometimes get close to the pitch you are looking for but are unable to really dial it in.

Higher end guitars typically have tuners with gear ratios of 16:1 or 18:1, but when I read that Steinberger had a tuner that had a 40:1 ratio, I knew I had to give it a try.  Stu Mac was selling them in the $100 range (expensive – but the gold color will run you $50 more!)

Installation:

The installation requirements for these tuners are a minimum headstock thickness of 1/2 inch and a maximum string gauge of .060.

The tuners themselves are heavier than standard tuners but seem much lighter than the Schaller locker tuners.  As an interesting aside, for those of you who are thinking of luthery, because there are no side tuners – this means that the tuners could be installed anywhere on the headstock and not necessarily only somewhere near the edge.

Installation was a little time-consuming but not that difficult.  Stu-mac provided instructions which made the process much easier.  As opposed to having a screw on the back of the guitar holding it in place, the Steinberger has a small post that mounts on the face of the headstock.  The hole size is very small so if you decide to go back to regular tuners, it will easily be covered by the grommet .

you can see a nice breakdown of the process here.

Installed it looks like this.

Front:

Back:

In Use:

The 40:1 Gear ratio is the smoothest I have ever encountered.  Even the subtlest changes in string pitch are easy to dial in.  This is a device you want to use when you’re using one tuning.  There’s really no way to do quick alternate tunings – so If you change tunings a lot – these will probably not be a good match for you.

When changing strings, the top screw is loosened to let the string in.  You then need to pull the string tight, and clamp down the top screw.  By tight – I mean that you may need a pair of pliers to get the string in the ballpark of tension.

The knob on the back, then is used to tighten the string to pitch.  As an interesting aside, rather than winding a string around a post, the tuner actually pulls the string into the headstock.  Very interesting.  As a down side – you need to clip the string really close to the post to prevent what you see in the photos – namely strings popping out of the headstock.

The instructions that were sent with the tuner include this:

“Plain strings must either have silk or steel wrapping at the ball ends or be soldered. Otherwise, your guitar will be easy to pull out of tune.”  I haven’t soldered the ball end – but it will be interesting to see in the weeks ahead how it works.

This coupled with the tensioning issue – means that changing a string mid-gig could be tricky.  Supposedly the process puts less tension on the overall string – so you’re less likely to break one.  But I’d recommend bringing a backup guitar to the gig just in case.

As I’m using a guitar with a tremolo bridge, I do notice a distinct difference in the tension in string bending.  I’m definitely working a little more to get strings bent to pitch – and now that the tuners lock the trem is moving more when I bend.  Not a big deal – just a noticeable difference…..

The Plus Side:

Light weight (for a locking tuner).

Truly stable tuning

Incredibly smooth mechanism

Ability to tune in increments not possible with conventional tuners.

The Minus Side:

Pricey

Getting string to pitch before clamping can be tricky

Will not handle multiple tunings.

Won’t handle string gauges above .60

Verdict:

Over all, this is a case of you get what you pay for.  If you’re going to be sticking with one tuning on a guitar – these are pretty impressive tuners!

AU Lab/POD Farm 2.0/Live Laptop Rig Tutorial Part 4

Posted on by
1

Welcome back!  In this post, I’ll be integrating SooperLooper into the AU LAB Live rig I’ve been building.  If you haven’t read the earlier posts about this (part 1, part 2 or part 3) you may want to read those before continuing on.

An Important note about sample rates:

From here on out – if you’re going to be incorporating other audio into the session (including looping in SooperLooper) – you’re probably going to have to set the sample rate back to 44.1 (and set the Impulse responses back to 44.1).  If I’m not looping –  I try to set the rate as high as I can, but know that it’s going to have to get bounced down to 44.1 for recording, etc.

SooperLooper:

The next step is to set up Sooper Looper to be able to loop audio.  I’m going to put SooperLooper on a bus, so I can either send audio to it or bypass it as need be.

In AU LAB – – > Sends – Select BUS 1.

A new Bus Strip will open.

Under Effects – scroll down and select Sooper Looper.

When you do this, Sooper Looper will open up in 2 windows:

The first window:

And then the GUI

A Quick Tip:

When using sooperlooper, you need to increase the “main in mon” to hear any output.

You can set up multiple stereo loops in Sooper Looper by selecting them from the SooperLooper menu.

I like to have 4-5 different loops set up.

You could do more (your limits are your system resources- but since I’m on a laptop – I want to be able to see everything (and this takes up some screen space).

Another Quick Tip:

You can set SooperLooper up for midi controls but the key binding options will help you navigate the window pretty easily as well.  They’re found under SooperLooper Preferences.

For example – you need to select an audio loop in order to record to it.  If you look at the bindings above you’ll see that select_loop_1 is currently set to “1”.

So if you’re on the active SooperLooper window and hit 1 – you’ll arm track 1. (Note the new line to the far left of SooperLooper that shows which track is armed for recording)

Make sure to save your AU Lab session.

Setting up MIDI control in SooperLooper:

In the first SooperLooper window:

Click on the arrow next to essej.net: Sooper.

Select Midi Effect Editor

Set the MIDI Source to the controller you want to use and set the Midi Channel to the channel you want to use.

Note:

If you don’t see the controller then go to Audio-Midi Setup application (or you could find it in the Application – –  > Utilities folder) and click on the MIDI tab.

To Set up specific commands in Sooper Looper, you’ll need to go to Midi Bindings under SooperLooper Prefereces:

MIDI Binding Steps in SooperLooper:

Click “Add New”.

Select a command under “Command/Control”.

Click “Learn”.

Press the midi control you want to use to control the function.

Click “Modify”.

When you get all the functions learned  – click Save.

Also make sure you save bother you SooperLooper AND your AU LAB session.  All the midi functions should be there when you reopen it – but if they aren’t and you’ve saved them in Sooper Looper – you can just “Load” them back in.

AU Lab : Transport

Here’s something pretty cool – the Window tab in AU Lab – select Show Transport

That will bring up the following window:

The MIDI Clock Source will probably default to Disabled – If you set it to Internal – you can use to tap tempo feature to synch effects or Sooper Looper  by tempo.  Pretty cool feature!

(Also in the the Window tab in AU Lab there are some other useful options particularly –  Show CPU Load – which brings up a handy visual meter to let you see how your project is doing with it’s resources.)

Additional Resources: SooperLooper

SooperLooper is an incredibly deep plug in.  It would be easy to devote a 5 part article to just the feature set and use of it – The  Sooper Looper forum is also extremely helpful with various Sooper Looper issues, and also has a specific SooperLooper AU LAB section.

Next time – I complete the rig (for now)

You can find all of the laptop guitar rig posts on the Blueprints tab on the top of the page.  Once on the blueprints page – just scroll down to the Laptop Guitar Rig section.

Thanks for reading!


AU Lab/POD Farm 2.0/Live Laptop Rig Tutorial Part 3

Posted on by
Reply

Hello again.

If you haven’t read the first or the second posts about setting up POD Farm in AU Lab, you may want to review those first.

Automating Parameters with MIDI Learn:

Now let’s complete the clean guitar setup and then automate some parameters in POD Farm.

First I’m going to delete the delay and add a volume pedal.  You’ll find it under “Dynamics”.

It could just as easily go before the amp, but in this case I want to put it between the amp and the delay, so I’ve deleted the Analog delay and placed a Tube echo after the volume pedal.

Next I’ll add a wah.

And an overdrive pedal.  I’m going to have a full on distortion tone on the other channel – but this gives me another tonal option.

Across the Very top of the Pod Farm Window (labeled Audio 1: POD Farm 2 (1))

You’ll see 4 tabs underneath that window reading from left to right:

Audio1 –> POD Farm 2(1) –> Untitled –> Line:6 POD Farm 2

Select the arrow to the right of Line:6 POD Farm 2 and scroll down to Midi Effect Editor:

You’ll notice that the MIDI Source is None – which in this case means that the shortboard is getting power and sending midi, but it’s not being received by POD Farm/AU Lab.

I’ve selected the POD short board for the MIDI SOURCE, and will keep it on midi channel 1

POD Farm: Midi Learn – Volume

Now that the midi signal from the shortboard will get to POD Farm, I can use the Midi Learn function.

Let’s start with the volume pedal.

If I select the volume pedal in the signal chain a close up of the pedal will open up in the window above the signal chain.

Since I want to control the volume of the pedal  – I want to cntrl – click the level knob on the pedal.

That brings up the following option:

Choose MIDI Control – – > MIDI Learn.  Now if I move the volume pedal with my foot the level on the screen will change as well.

(If you make a mistake you can choose the “Clear” option above MIDI Learn and repeat the process.)

Note:

If you wanted to do this with a distorted amp and roll off the gain, you could select the amp and cntrl – click the Gain knob.  Even better, with the “Set min to current pos/Set max to current position” you could use the volume pedal for subtle variations in gain.

POD Farm: Midi Learn – Volume

Let’s see how this works with the Wah pedal.

First, as opposed to the volume pedal, which is always on, I want to be able to turn the wah pedal on and off.

The “secret” here is to automate the On/Off button under the “Gate” Button.

By selecting the MIDI Learn function and pressing down on the toe switch, that switch now turns the pedal on and off.

Next, with the toe switch on – I’m going to set the volume pedal to control the WAH sweep.  Just cntrl-click the actual wah switch for MIDI Learn and move the pedal.  The pedal will now control the sweep.

I like the Chrome Custom pedal, but don’t like the extreme high end, so I’m going to limit the scope of the sweep.  I’m going to turn the knob to 85% or so and then cntrl- click, but this time instead of selecting MIDI Learn, I’m going to choose “Set max to current position”.

Now when I sweep the wah it only goes from 0-85%.  This is really useful if you only want to filter a specific bandwidth.

I’ll set the Overdrive to an on off setting – the same way that I did with the wah.

That is enough for a general clean tone.  Now onto…

The Dirty Channel:

I’m going to spend a lot less time on this as I’ve already shown how to set up and automate effects on the clean side.

Here’s the default set up:

A brief note on tone:

In distorted models, you can create amps with gain structures that you could never create feasibly in the real world.  One problem I hear a lot is the desire to crank the gain and cut all the mids.  That creates a particular sound – but it’s not one that cuts through very easily.  The overdrive will boost the channel a bit in general, but it’s easier to ADD distortion live than it is to take it away.  Again, louder isn’t always better.

Basically I’m using the same Volume, Wah and delay as the clean channel above.  The only differences are in the amp and overdrive pedal (and that I’ve moved the placement of the volume pedal.)

Here’s the overdrive setttings:

POD Farm: Midi Learn – A/B Switch

The next step is to set up a midi command to be able to switch from the A to B channel.

The secret here is to click on the mixer button so the A/B Box appears in the window above the rig.

All I have to do then is cntrl-click the A/B button and select a button on the shortboard and then it’s all set.

Save your Bacon:

Hopefully you’ve saved your POD Farm patch and your AU Lab settings, but if not saving them both are very self explanatory.

Let’s start with POD Farm:

Click to the left of Default and save as

In this stage, you can also make whatever notes you want as well for later reference which is a nice feature.

Another really cool thing about AU Lab is that when you save AU lab – it saves the settings on all of the effects in AU Lab.  So save OFTEN.

That’s it for this post.  In the next post, I’ll add Sooperlooper into the rig.

You can find all of the laptop guitar rig posts on the Blueprints tab on the top of the page.  Once on the blueprints page – just scroll down to the Laptop Guitar Rig section.

Thanks for reading!
