Recycling Shapes or Modular Arpeggios for Fun and Profit

When improvising, I need to be able to access sounds immediately.  One tool that I use for this is Sonic Visualization (which is really a cornerstone of the GuitArchitetcure concept).  In Sonic Visualization – I associate shapes with sounds so that I can make changes, modify  or develop ideas in real-time.  Here’s one example of this in action and has some cool ramifications for application.

For the audio examples – I’ll be using a Line 6 variax AC 700 strung with D ‘addario .012 phosphor bronze strings – to show that this can be performed on an acoustic guitar.  I used the line 6 as I could record it direct into the laptop in AU lab and not have to use a microphone.

First:  Here’s an example of this approach played at tempo.

Now let’s start slowly and see how to get to that point.

Let’s say we were going to solo over an A5 chord.

Since there are only 2 unique notes (A and E), you could play almost any type of scale or arpeggio over it – but for a moment – let’s look at a minor tonality.

If I was playing straight up metal, I might just play an A minor arpeggio over it.  There’s nothing wrong with this sound – but I want to spice it up a little.

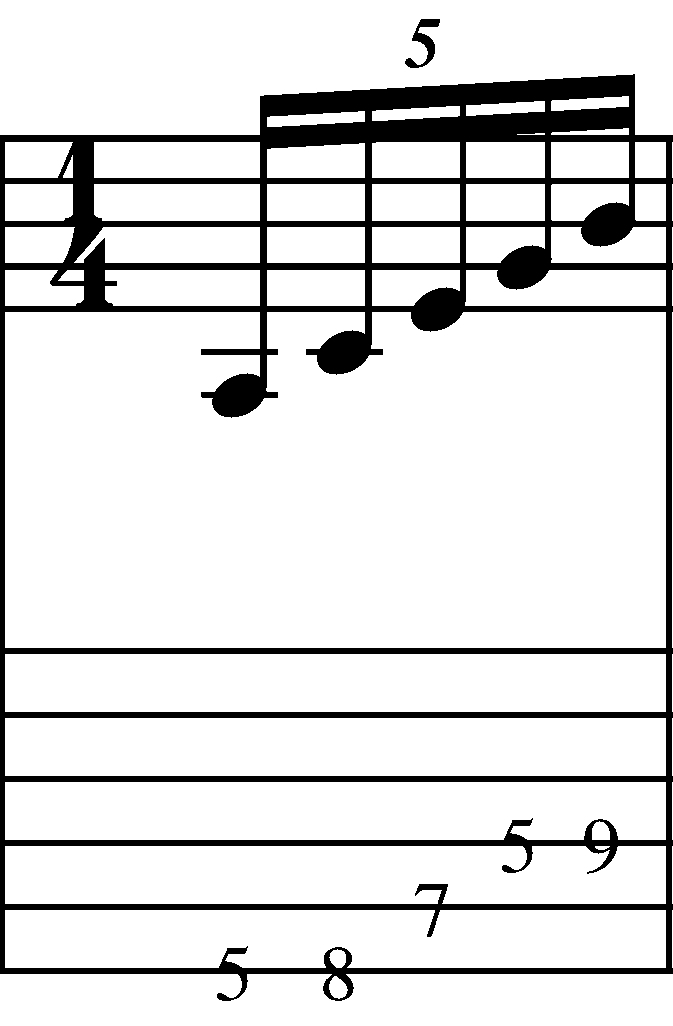

One thing I’ll do as a starting point is to extend the arpeggio. Instead of just playing an a minor triad (A, C and E) – I’m going to add a G and a B to the arpeggio creating an A minor 9 sound.  Here’s the form I’ll be using:


Some quick notes:

Fingering – basically I view this as a positional form so I’m using the 1st finger for notes on the 5th fret, 2nd finger for the E on the 7th fret, 3rd finger for the C on the 8th fret and the 4th finger on the B on the 9th fret.

Hand tension – As your playing through this shape – you want to keep your fretting hand as relaxed as possible.  The more tense your hand is – the more difficult this will be to play.

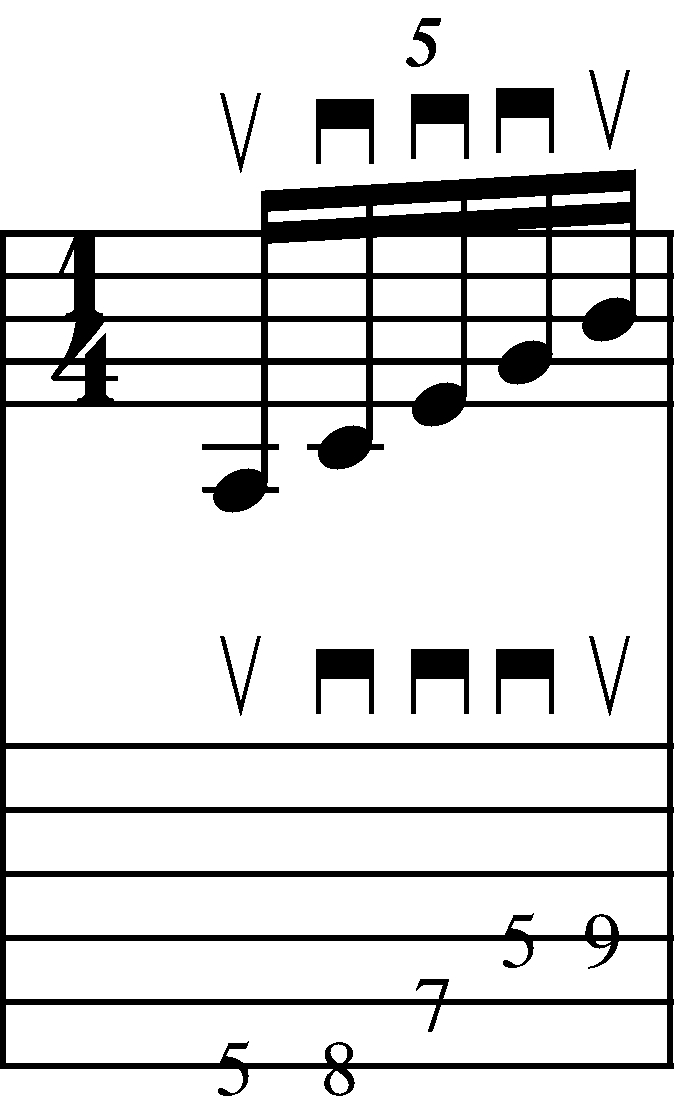

Picking – you could play this with alternate picking or all hammers – but I’m going to recommend a specific picking pattern for this arpeggio:

Notice that it starts on an upstroke and then uses all down strokes.  This picking pattern will become very useful as this process continues – but if you don’t have a lot of experience sweep (or rake) picking, you’ll need to keep your picking hand relaxed and work on getting the attacks all happening in time.

Timing – you’ll notice that this is a group of 5 (i.e a “Quintuplet” or “Pentuplet”) which means that you are playing 5 notes to the beat.  The  key here is to make sure that you are playing the notes in an even division – (i.e. the same length of time for each note and each space between the notes).

Here’s an audio example of just the arpeggio – first played slowly and then at tempo.

Note: in some browsers (Safari in particular)  the audio doesn’t always load properly in the new window.  If you just refresh the window it usually comes up the second time.

Obviously a metronome will help with consistency – but it you’re having trouble with hearing the division of 5 try the following.

Set up a metronome.

Set the click at a slow enough level that you can play 1 note per click.

Accent the first note and tap your foot to the first note only

Play each note of the arpeggio on a metronome click.

On the repeats – accent the first note and tap your foot to the first note only.  If you can – try to figure out the tempo of the first tones only (a tap tempo feature will help a lot here) and now try playing the arpeggio with only the first accent.  This is annoying to do for long periods of time – but can help a lot for short practicing cycles.

You may want to just start with this one arpeggio and work on synchronizing both hands – that alone could take some time if you’re unfamiliar with this technique.

From a performance perspective – you’re looking for uniformity of attack with regards to both timing and volume.



Recycling shapes

Here’s an interesting observation – If we play the same minor 9 shape we just used but this time move it to the 5th of the chord (In this case the pitch E or an E minor 9 arpeggio ), we get the notes E, G, B (which were also in the last arpeggio)but we get 2 added pitches D and F# which here act as the 11 and 13. This creates an over all A minor 13  or A Dorian sound.

Short cut #1 – when playing over a minor or minor 7th chord – you can play minor arpeggios from both the root and the 5th of the chord over it.



Short cut #2 – A minor 9 + E minor 9 = A minor 13 or an A Dorian sound.

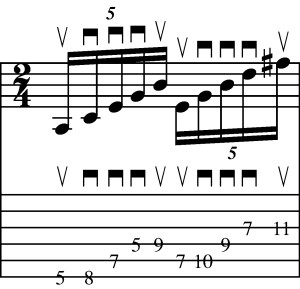

Let’s look at this in notation and tab:

Notice that by using the same picking pattern –  the upstroke of the B in the first arpeggio leads right into an upstroke on the E of the E minor 9 arpeggio.  The fingering pattern is the same as before.  Once you get the A minor 9 form down – you may need to practice the transition between the A minor 9 and the E minor 9 forms.

Here is an mp3 of the transition played at two tempos.

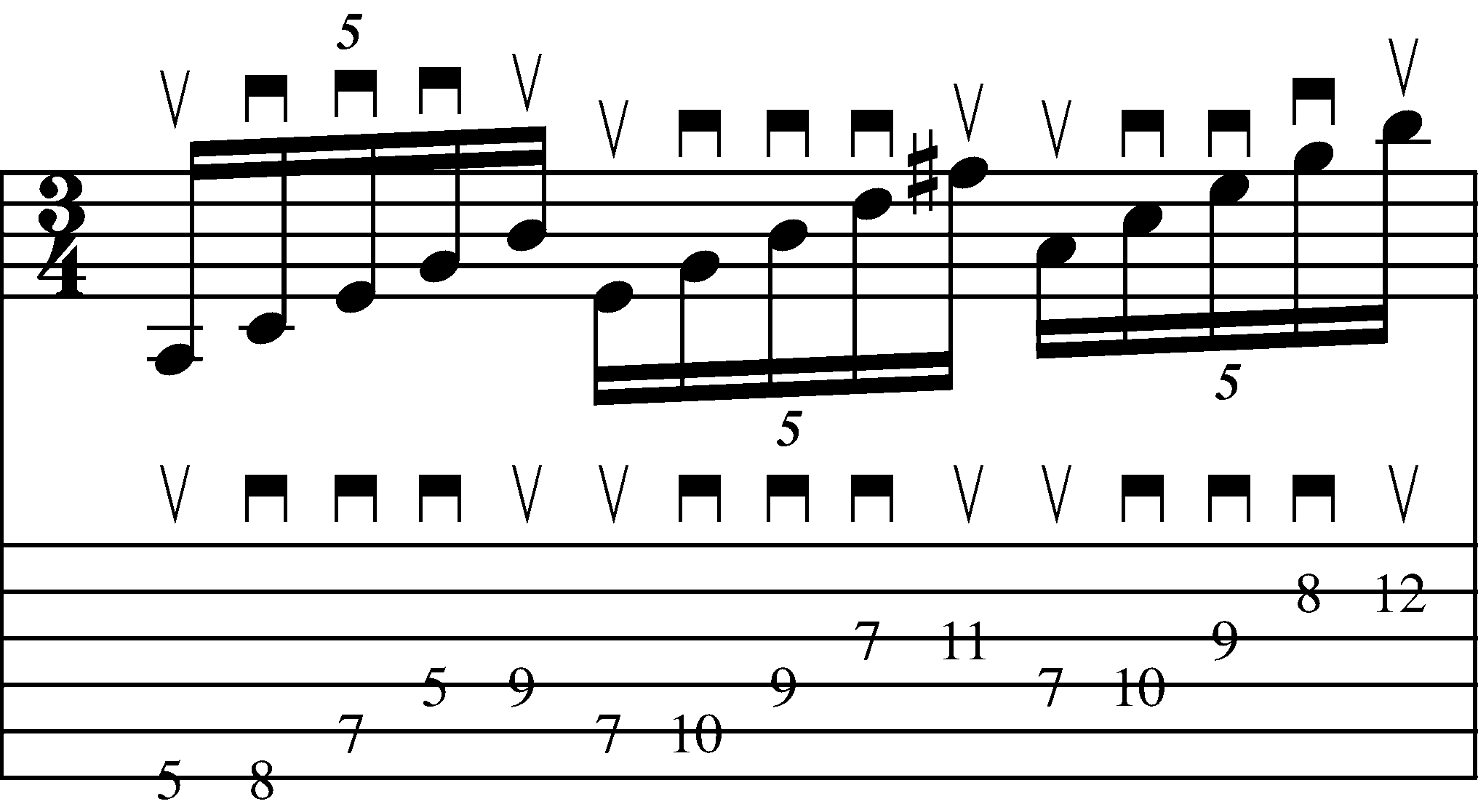

Finally, we can repeat the same thing on the last A of the A5 chord (although the fingering pattern will have to be adjusted by a fret for the G-B string tuning).

Here’s the top A minor 9  arpeggio played by itself – first slowly  and then faster.

As before, the same picking pattern is utilized to add continuity between the forms.  You could end on the B or pick another pitch the end the form on depending on what chord you’re playing it over.  Here I’ve chosen E.

Here’s the full arpeggio played at tempo.

You say Tomato I say Major

So now that we’ve looked at a minor example let’s use a major example.

If I sharp the C and G notes of the A minor 9 arpeggio –I have an A Major 9 arpeggio – which also works over A5.

Here’s the A major 9  arpeggio played slowly  and then faster.

Here’s another interesting observation – If we play the same major 9 shape we just used but this time move it to the 5th of the chord (In this case the pitch E or an E major 9 arpeggio ), we get the notes E, G#, B (which were also in the last arpeggio) but we get 2 added pitches D# and F# which here act as the #11 and 13.  This creates an over all A major 13 augmented 11 or an A Lydian sound.

Short cut #1 – when playing over a major or major 7th chord – you can play major arpeggios from both the root and the 5th of the chord over it.



Short cut #2 – A major 9 + E major 9 = A major 13 (#11) or A Lydian tonality.

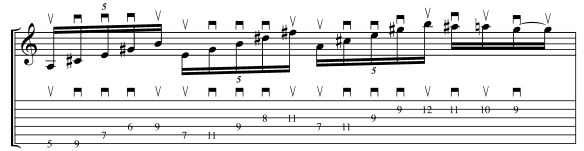

Since I’ve broken this process down a great deal with the A minor 9 process – I’ll just highlight the lick idea here.  You could end on the B or pick another pitch to end on depending on what chord you’re playing it over.

Here’s the full arpeggio played at tempo.

Here’s the A major 9  arpeggio played slowly  and then faster.

Taking it out

As a final idea – let’s apply this concept to extending the overall tonality.

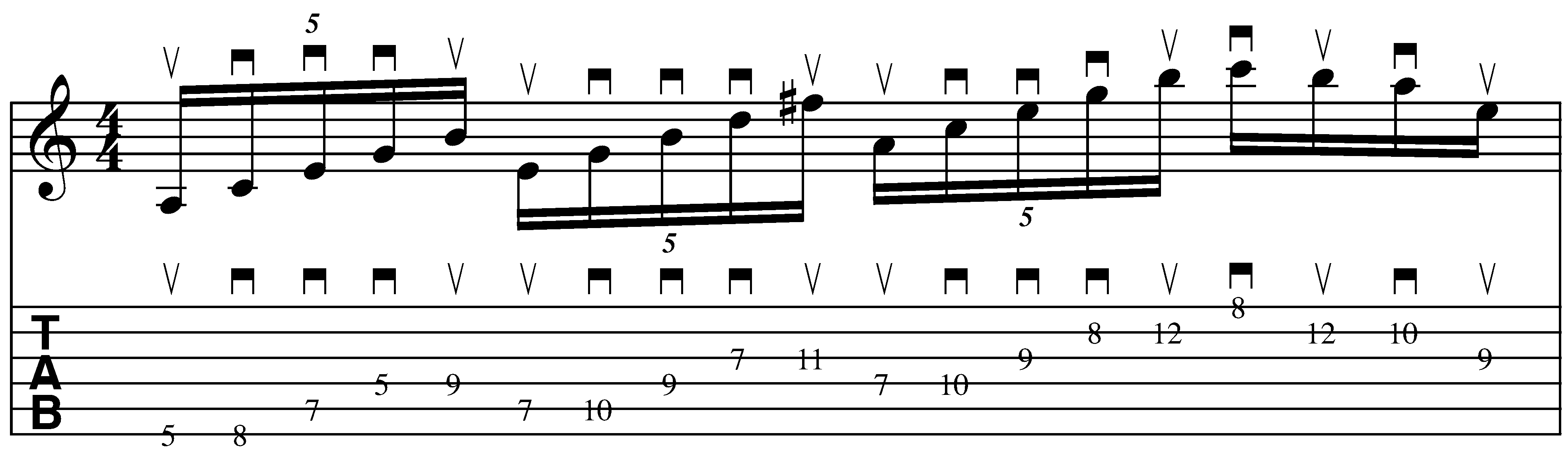

Here’s a transcription of an improvisation working off of this idea – but using a B minor 9 for the third chord of the sequence.

First let’s look at the A5 chord again:

Now – let’s realize that instead of building these structures off of the Root – 5th – root of the chord – that we could use other tones – for example here I’m going to use the Root, the 5th and the 9th:

Here’s a transcription of an improvisation working off of this idea – but using a B minor 9 for the third chord of the sequence.

Here’s the full arpeggio played at tempo.

Here’s the  arpeggio played slowly  and then faster.

C# is obviously not part of an A minor tonality – but by sneaking it into the arpeggio sequence it gently nudges the overall tonality to me in a pleasing way.

The point is to not get too hung up on rules or shortcuts – but instead to have a series of modular sounds and approaches that you can use as the need comes up.

I’ll be posting more about these types of approaches in the weeks and (more likely) months ahead.  Just remember in general to keep your hands loose, your rhythm tight and your attention focused – but if this is your first time to the site I’ve posted a number of things on practicing in general which may be helpful to you.

I’m always looking for feed back on these posts!  If possible – please take a minute to comment or drop me a pm @ guitar.blueprint@gmail.com to let me know if these are useful to you.

Thanks for dropping by!
