The GuitArchitect’s Guide To Modes – Part 15 Not-peggios – Harmonic Minor Version

Posted on May 12, 2013 by GuitArchitecture

Hey everyone,

As promised, here’s a follow-up lesson that takes the approach I explored in Part 13 and Part 14 and now applies it to the Harmonic Minor scale.

I’ll use C Harmonic Minor in this case – but this idea will work on any root.

Chords

Before we get too far into the lick side of this let’s look at the chords to see what we can play this over.

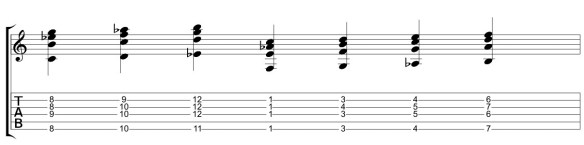

Here are the diatonic triads and 7th chords.

Try playing the initial C Harmonic Minor shape over any of these chords…

Harmonic Minor Notes:

C Harmonic Minor is spelled C, D, Eb, F, G, Ab, B, C – and from the root note the step and a 1/2 between the Ab and the B is a very distinctive sound of the scale.

This scale has a lot of cool arpeggios and chord scale associations, but the most commonly used scales and modes are the root scale and the mode based on the 5th of the scale (R, b2, 3, 4, 5, b6, b7). Having said that, modes starting on the b3 and 4th add some really cool sounds as well.

Now let’s talk about visualizing the scale.

Harmonic Minor

I’ve talked about my approach to Harmonic Minor briefly in part 9 of this series – but as a brief review:

Major Scale/Modal Visualization Review

The guitar fingerboard can be divided into 3 sets of two strings. Any 2-string fingering pattern that starts on the B string can be moved to the same starting pitch on the D or the low E string and keep the same fingering.

The major scale can be broken down into seven two-string modes that follow a specific order based on its scale degree from the parent scale (Ionian, Dorian, Phrygian, Lydian, Mixolydian, Aeolian, Locrian). The two-string patterns are modular and can be adapted to positional playing.

Instead of thinking of individual modes when playing, I tend to think of larger tonal systems (i.e. I think of C Major all over the fingerboard instead of D Dorian or A Aeolian.)

By thinking of the fingerboard in a larger scale – it makes it easier for me to navigate Melodic and Harmonic Minor as – solely from a fingering/sonic visualization standpoint – I just see it as variations of the Major scale patterns.

To visualize Harmonic Minor patterns – simply flat the 3rd and the 6th of the Parent Major scale. (i.e. to visualize C Melodic Minor just play C major but change every E to Eb, and change every A to Ab).

It’s important to note that all of the fingering conventions mentioned here are solely to assist with visualization as Melodic and Harmonic Minor really aren’t directly related to the Major scale sonically.

Here’s C Major

Here’s the audio.

Note:

In all the audio examples, I’ve played the example first as sextuplets – then at a slower tempo (i.e. 16ths) – then as sextuplets again.

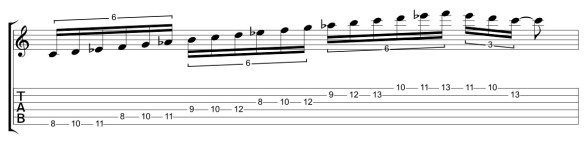

Here’s C Harmonic Minor

(the only differences are

the E has been changed to Eb and

the A has been changed to Ab)

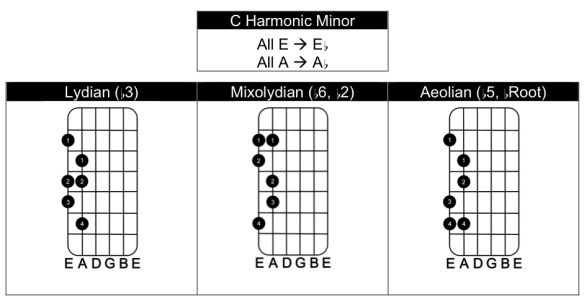

Harmonic Minor short cuts:

To visualize Harmonic Minor Patterns – simply flat the 3rd and the 6th of the Parent Major scale.

(i.e. to visualize C Harmonic Minor just play C major but change every E to Eb and every A to Ab).

Here are the pattern adaptations. In a situation like this, it can get confusing to remember a formula like “Dorian b2, b5” so as an alternative you may just want to try remembering something like “Pattern 1” for Ionian b3, b6, “Pattern 2” for Dorian b2, b5, etc.

Here’s the same scale pattern – I left off the text “Pattern 6” in the example be by mistake but the sequence is Ionian b3, b6 (Pattern 1 ), Locrian b4 (Pattern 7) and Ionian b5, bRoot (Pattern 6). You can really see this if you compare it to the initial major patterns.

Not-Peggios

Now let’s take this not-peggio idea from the last lesson and apply it to C Harmonic Minor starting from G.

In each of the following I’ll show the 2-string pattern followed by the 4-note “notpeggio” extraction from that fingering and then show the multi octave form.

Note: The extraction always starts from the second note of the 6-note pattern – so while the first example is extracted from the F Lydian fingering – it’s viewed as a G based pattern.

From G

Note: this G-based pattern is the same as the C major and the C Melodic Minor G shape. It’s functional but a little plain sounding over a G major chord.

From Ab

Note: this R-3-#4-5 extraction works great as a lydian sound from the Root (Ab Lydian in this case) or a Dorian Sound over the vi (F minor in this case)

From B

Note: even though the original shape is different, this R-b3-b4th-b5 extraction is the same as the Melodic Minor pattern and is something you may want to explore over diminished chords.

From C

Note: this C pattern shape is the same as the C-Based C Melodic Minor pattern.

From D

Note: this R-b3-4-b5 extraction is right out of the D-Blues scale and can be used in the same context (just remember to resolve the Ab!)

From Eb

Note: this is a new shape from the other patterns we’ve seen. The R-3-4-b5 (i.e. major b5 (add 11) sound mixed with the min3-min2-augmented 2nd construction and the added chromatic weight from the G to Ab makes it sound a bit harmonically unsettled over an Eb root. I think it’s one of the more interesting sounds of the scale along with the final extraction….

From F

Note: this is a new shape from the other patterns we’ve seen. The R-b3-#4-5 (i.e. minor add (#11)) sound is a really nice spice to incorporate in your melodic ideas!

Here’s an audio sample of the 3/4 measures in ascending order from G

Next TIme?

In the next lesson I’ll look at using these extractions positionally. It’s a Scott Collins original idea – and not one that I’ve heard anyone else really employ in this manner!

Practice Tips

As always, focus on the 3 T’s (Timing, Tone and hand Tension) when playing through these and make sure to have the timing locked in as you increase the metronome speed. This approach is just a short cut to getting the patterns under your fingers. By practicing them slowly and increasing the performance tempo gradually, you’re also getting the sound of them in your head – which is critical if they’re something you want to integrate in your playing!

As always, I hope this helps and thanks for reading!

– SC

PS – One plug here. If you like this idea – I go MUCH deeper into similar concepts in my Guide to Chord Scales book – which covers every unique melodic combination from 3 notes to 12-note scales!!

Print editions of this book are available on lulu.com or on Amazon (amazon.com, amazon.co.uk, or amazon.fr).

P.S. If you like this post – you may also like:

BOOKS:

The GuitArchitect’s Guide To Modes Part 9 – Visualizing Melodic and Harmonic Minor

Posted on February 4, 2012 by GuitArchitecture

A while ago, I had posted that given an hour, I could get almost anyone at an intermediate level to visualize any of the Major, Melodic Minor or Harmonic Minor modes anywhere on the guitar. In this overdue return to the serialization of the guide to modes book – I guess this is my put up or shut up moment. ; ) Since this is print as a pixel based medium – I’m going to cover it in a lot more detail than I might normally in, say a 1/2 hour lesson.

As a precursor, all of the information here works off of the 2-string (3 note-per string) pattern visualization method that I’ve covered in parts 3a and 3b of this series, if any of the initial shapes (or connecting ideas) in this post seem confusing, just go back and review the following:

THE GUITARCHITECT’S GUIDE TO MODES PART 3B – Seeing The Six-String Major Scale

THE GUITARCHITECT’S GUIDE TO MODES PART 3A – Seeing The Six-String Major Scale

THE GUITARCHITECT’S GUIDE TO MODES PART 2 – Seeing The Two String Major Scale

THE GUITARCHITECT’S GUIDE TO MODES PART 1 – Seeing The Single String Major Scale

A Pedagogical note (taken from part 2)

Since the initial emphasis of this lesson series is on sonic visualization and making sense out of 2-string and positional fingerings, I’m only dealing with visualizing parent scales (Major, Melodic Minor or Harmonic Minor in this case) as a whole here.

While modes are always associated with a chord or a chord progression, I’m limiting harmonic options only to C Major/Melodic Minor/Harmonic Minor for now.

Extremely important elements in this process, such as harmony, modal interchange, arpeggios, individual modes and actual music making are the topics for other posts. Having said that, it is important to state again, that modes (or any scale), in and of themselves, are not music but are only a tool in making music. Anything I post here should always be filtered through your own aesthetic and utilized, adapted or even ignored accordingly (i.e. take what works for you).

With that in mind here’s a review of much of the information as it relates to C major. For the Melodic and Harmonic minor shapes – just skip down to the next section.

Major Scale/Modal Visualization Review

The guitar fingerboard can be divided into 3 sets of two strings. Any 2-string fingering pattern that starts on the B string can be moved to the same starting pitch on the D or the low E string and keep the same fingering.

The major scale can be broken down into seven two-string modes that follow a specific order based on its scale degree from the parent scale (Ionian, Dorian, Phrygian, Lydian, Mixolydian, Aeolian, Locrian). The two-string patterns are modular and can be adapted to positional playing (see rules above).

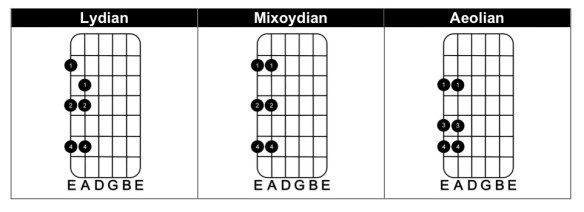

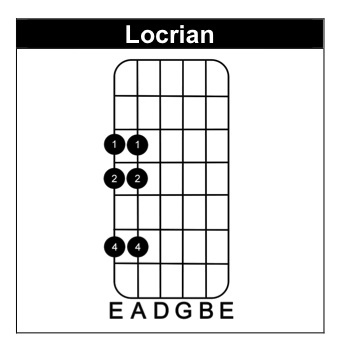

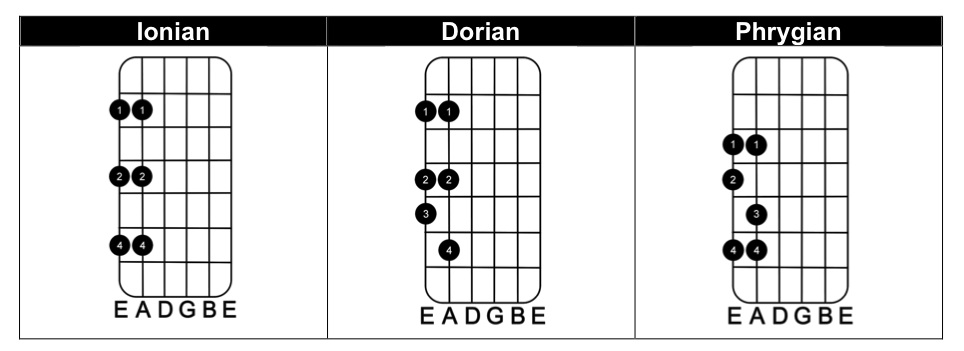

The modular 2 string modal shapes I use look like this (The numbers represent fingers).

Here’s a C major scale played on only the B and E strings:

Comparing the initial shapes to the ascending pattern, the positional patterns can be broken down into the seven 2-string modal fingerings that ascend in sequential order (i.e. C Ionian, D Dorian, E Phrygian, F Lydian, G Mixolydian, A Aeolian and B Locrian).

Since the two-string patterns are modular they can also be adapted to positional playing. So if we look at a C Major scale played in the 8th position and starting from C:

This 6-string fingering can be seen as containing three distinct patterns:

Two-string sets of C Ionian

Here are the important things you need to know for visualizing this:

As the fingering pattern ascends across the strings,

the six note modal fingerings descend to the next modal pattern.

Like wise, as the fingering pattern descends across the strings,

the six-note modal fingerings ascend to the next modal pattern.

This is true of any 2-string pattern.

Adapting Major shapes to create Melodic and Harmonic Minor fingerings

I’ve talked before about the modal microscope and seeing things on the parent major level. The advantage of this comes into play right here. First, let’s take another look at a C major scale played in the 8th position again:

Here’s the audio.

Note:

In all the audio examples, I’ve played the example first as sextuplets – then at a slower tempo (i.e. 16ths) – then as sextuplets again.

Each mode is associated with chords as well. Here’s a chart of the triad and 7th chords for C Major:

In all of the chord examples below, I’ve taken sample diatonic 7th chord shapes for the E, D, G and B strings with the roots on the low E string. These are certainly not the only way to play these chords, but if you’re not familiar with the voicings they’re not a bad place to start. Also, while I’ve notated each chord as a 1/4 note, I’ve held each chord for 2 bar lengths (i.e. 8 beats) to be able to play the scale patterns against.

Also, distortion tends to wash out chords with larger voicings, so for all the examples in this exercise, I’ve used a clean setting courtesy of Scuffham Amps.

Melodic Minor

To visualize Melodic Minor Patterns – simply flat the 3rd of the Parent Major scale.

(i.e. to visualize C Melodic Minor just play C major but change every E to Eb).

It’s important to note that all of the fingering conventions mentioned here are solely to assist with visualization. Melodic and Harmonic Minor really aren’t directly related to the Major scale sonically.

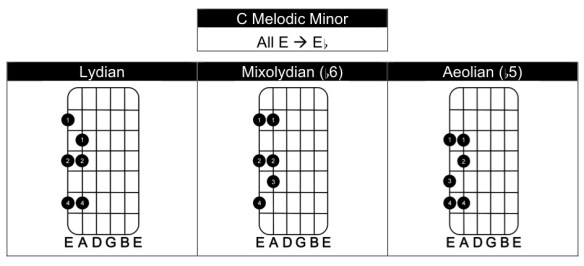

Melodic Minor short cuts:

Using the Parent Major patterns above here’s a list of short cut’s to help you visualize the patterns.

Note: in the F Lydian shape – there’s no change from the major shape since there’s no Eb in the 2-string pattern.

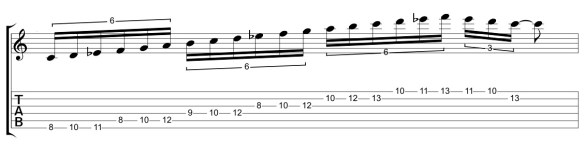

Here’s the initial melodic pattern with the modified major fingerings written above the 2-string shapes:
