Recycling Chords Part II: Triad Transformation

In the previous recycling chords lesson, I looked at ways to reinterpret chords. Another way to create different sounds is to take something as basic (and familiar) as a triad and alter tones to create more complex chords.

Note: this process isn’t designed to replace the need to learn multiple chord voicings but instead to supplement it.

.

Starting with the Flats

For example, take a C major triad (C, E, G) and flat the 3rd, and it becomes a C minor triad.

This idea also can be applied to the root of the chord.

If the note C is flatted a ½ step (1 fret), the new note is B.  This creates a C major 7th chord with no root.

Likewise, if the note C is flatted a 1 step (2 frets), the new note is Bb. This creates a C7 chord with no root.

.

Moving to sharps

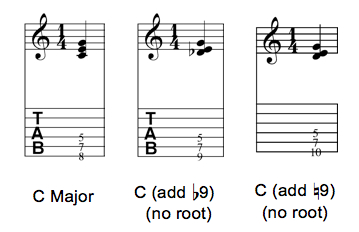

To add a 9th to the chord quality, raise the root  a ½ step for a flat 9 (b9) (or a step for a natural 9).

.

This is a good place to make a couple of notes:

.

First: the voicings presented here are used to demonstrate the process, but I like some of them better in other registers.  For example, here is the C add 9 voicing on the top 3 strings.

Second:  one reason to explore voicings without roots is that, in an ensemble setting, the bassist often holds down the root of the chord.  If you need the root –  it’s easy enough to just add it in.  Here is the same chord with a root:

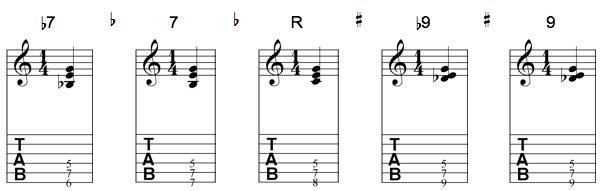

The chord tone transformation chart


The following is a map of alterations to show how chord tones can be modified to create other sounds.

.

Taking the approach above, some general rules can be applied to a major triad.

.

The root of the chord can be lowered to the 7 or raised to the 9.


.

The third of the chord can be lowered to the 9 or raised to the 11.

.

The fifth of the chord can be lowered to the 11 or raised to the 13.

 .

In this manner, a triad can be altered into almost any other functional chord.


Here’s an exercise that utilizes a D major triad to illustrate this idea:

.

Note:  D major is used instead of C major because each note of a 1st position D major chord can be lowered to another note on the fingerboard, without using open strings.  In other words, each chord is a moveable voicing on the fingerboard.

.

The first step of this exercise is to make sure you can visualize triads both horizontally and vertically across the fingerboard.

 .

Horizontal (i.e. positional) visualization

Here’s a series of  D major chord inversions in the 2nd position.

Here are the D major inversions in the 5th position

and in the 10th position.

If these voicings are unknown to you, start by familiarizing yourself with them before continuing to the rest of the lesson.

.

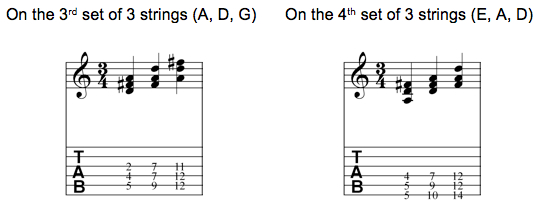

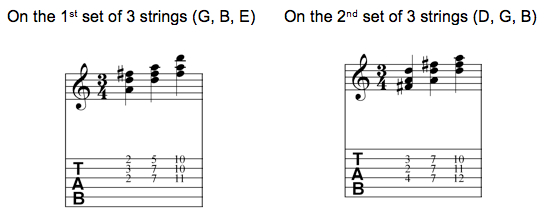

Vertical visualization

Note: the important thing with both the horizontal and vertical voicings is knowing where each chord tone is located in the voicing.

One way to practice this is to play through the chords and stop at random points and ask, “where is the root?” “where is the 3rd?”  “where is the 5th ?”  This has to be full internalized to be able to intelligently transform the chords, with the goal being instant chord tone identification.


As with the horizontal voicings, if these voicings are unknown to you, start by familiarizing yourself with them before continuing to the rest of the lesson.

.

Triad Transformation Exercise

Now that the preliminary steps have been taken, let’s begin the process.

First, here are a few chord formulas we’ll need:

Major: Root, 3rd, 5th – D, F#, A

Major 7th: Root, 3rd, 5th and 7th –  D, F#, A, C#

Dominant 7th: Root, 3rd, 5th and  flat 7th –  D, F#, A, C

Minor: Root, flat 3rd, 5th –  D, F, A, C

Major 7 flat 5: Root, flat 3rd, flat 5th and flat 7th-  D, F, Ab, C

Now, let’s go through the exercise as individual steps to explain the process.

.

Step 1:  Take a Major chord (in this case D)

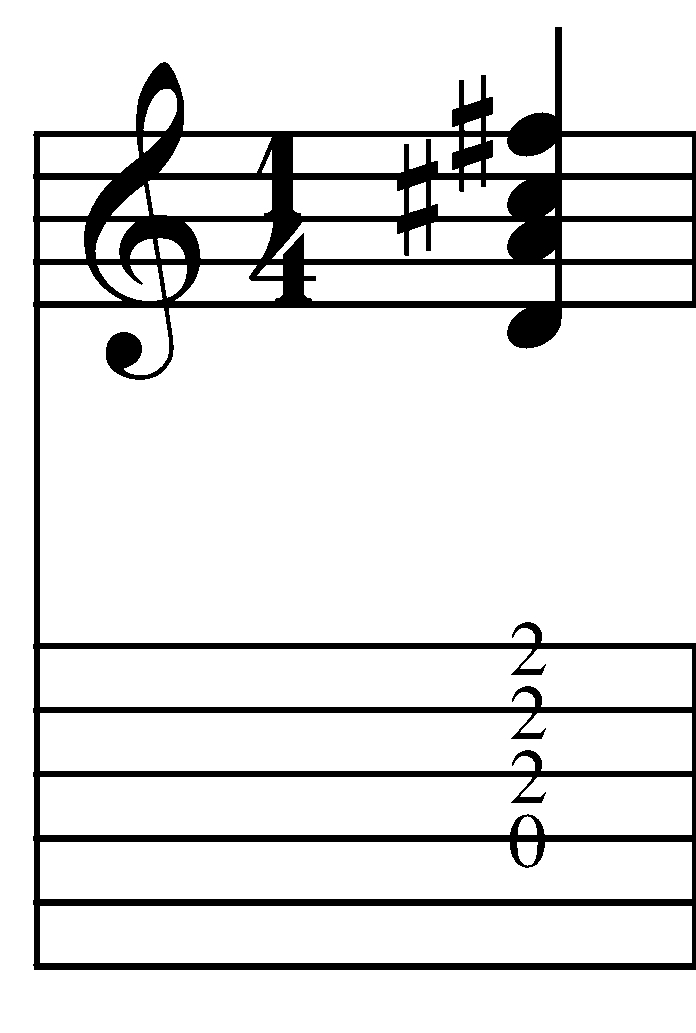

Step 2: Make it a D Major 7 chord

[by flatting the root a 1/2 step (1 fret)]

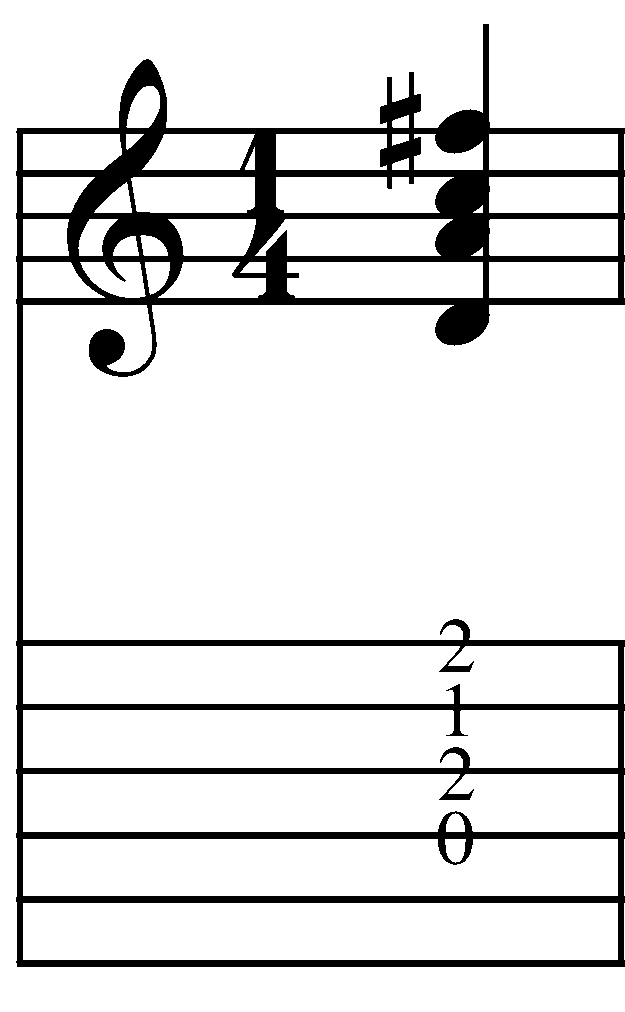

Step 3: Make the chord a D dominant 7 (D7) chord

[by flatting the root 1 step (2 frets)]

Step 4: Make the chord a d minor 7 chord

[by flatting the 3rd of the D7 a 1/2 step (1 fret)]

Step 5: Make the chord a d minor 7b5 chord

[by flatting the 5th of the Dminor7 a 1/2 step (1 fret)]

You get the idea.  Transform the chord into every possible voicing and repeat with every other inversion.

.

When less is more – A case for smaller voicings

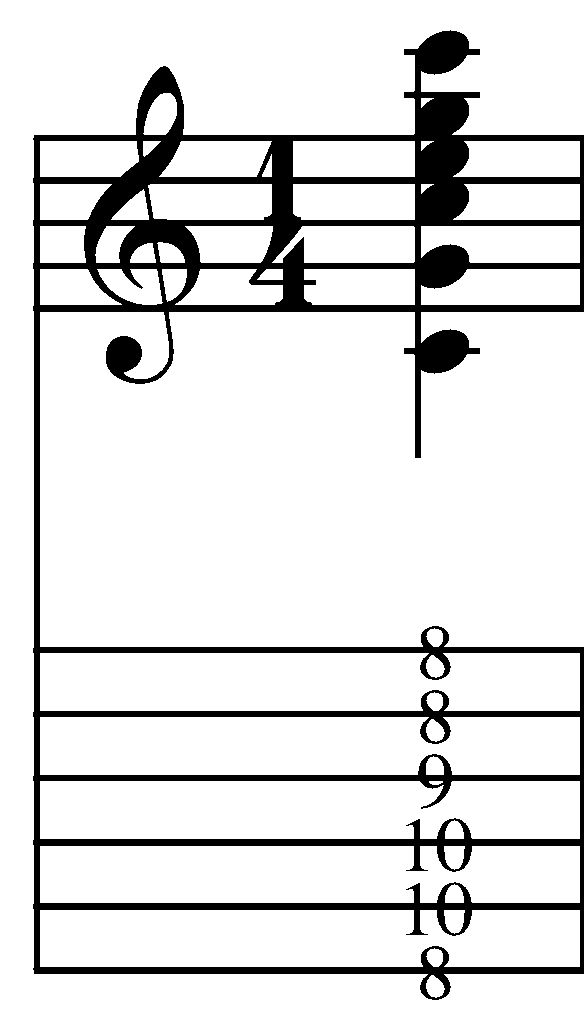

When I started out playing, if a song called for a C major chord, I’d play something like this:

While there’s nothing wrong with six note voicings, context is everything.  It took a while to realize that when playing in larger groups, smaller voicings sometimes helped propel the song and allowed for better voice leading.

For example: here’s the same C Major chord but with just 3 notes.

And here is the voicing in a I-iv-V7 (C-F-G7) progression with smooth voice leading.

If you’re playing solo guitar – this isn’t going to fill a lot of space sonically but it works well in an ensemble, and it’s easy to play.  A win-win.

I hope this helps!  In a future lesson I’ll go further into this concept and use it to create 9th, 11th and 13th chords.  In the meantime, you’re free to download and distribute any of the lessons here but I maintain the copyright on the material.

I’m always looking for feedback on what people find useful and what they don’t, so if you have any questions or comments, feel free to e-mail me at guitar.blueprint@gmail.com .
