Hello all,

.

I wanted to take a break from the excerpts from the modes book I’ve been posting and post a lesson that’s based on material from my new Harmonic Combinatorics Book.  In that book, I have an entire section about using triads and 7th chords to create more complex sounds.

.

Here’s the two sentence synopsis:

  • Playing a minor chord (or arpeggio) a 1/2 step below a major triad implies a Lydian sound by giving you upper chord tensions (7, 9, #11) of that major chord. (i.e. B minor/C).
  • Playing a minor chord (or arpeggio) a step above a minor triad implies a Dorian sound by giving you the upper chord tensions (9, 11, 13) of the minor chord. (i.e. playing B minor over A minor).

.

Seeing (and making sense of ) the bigger picture:

.

When beginning players see a 3rd position C major chord they see something like this:

.

.

But an experienced player sees something more like this:

.


.

One of the secrets to seeing more of the fretboard is to see chord tones relationally.  I’ll show you how to do that by applying some of the approaches from a previous Triad Transformation lesson:

.

Taking a C major chord:

.

C Major Triad

.

(here’s a reference chord):

.

.

Lowering the root a 1/2 step gives you a major 7 chord:

.

C Major 7

.

C Major 7:

.

.

Lowering the 3rd a 1/2 step gives you a 9th.  Since there’s no other 3rd in the chord – this becomes a slash chord of G Major over C (written G/C).  It has a lot of the sound of a major 9th chord – but because it’s missing the 3rd it really only implies the tonality.

.

G / C

.

G/C:

.

.

If you want this to sound like a Major 9th, we’ll need to add a 3rd in as well.

.

C Major 9

.

C Maj 9

.

.

Lowering the 5th a 1/2 step gives us the #4 (aka the # 11).  Here I’ve kept the 3rd to make it a Major 9 (#11) chord.

.

C Major 9 (#11)

.

C Maj 9 (#11)

.

.

Notice that if we lower the root  a 1/2 step – we have a B minor triad:

.

B Minor

.

So, as a short cut,  playing a B minor over C we imply the sound of a C major  9 (#11) chord without having to memorize a separate voicing.

.

Melodic Application

This extends into lead playing as well.  Rather than just playing a C major arpeggio over a C chord, here I’ve replaced the bottom note of a B minor arpeggio with a C and resolved it to C:

.

B min / C  or C Lydian Lick

.

C Lydian lick (louder than the chord mp3s- FYI):

.

.

Here’s another chord voicing of B minor/C:

.

B minor / C

.

When I see voicings that use the middle notes of the 7th fret,  I generally try to think of ways to incorporate harmonics into it.  In this example, I’ve added harmonics in to fill out a B minor arpeggio with some encircling to resolve it to C. I forgot the fermata on the first chord – but you’ll figure it out when you hear the mp3.

.

B min / C aka C Lydian Lick 2

.

C Lydian Lick 2:

.

.

Now we’ll take this in a different direction:  playing B minor over A minor implies a cool A minor 13 sound.  I’ve added an A to lick #1, and a semi-chromatic run that skips the 3rd and makes it a more open sound.

.

B min / A min – A Dorian Lick

.

B min/A Dorian Lick:

.

.

I’ve resolved the lines to the root notes of the chords I’m playing over – but you may want to stay on a tension depending on the context.

.

With any approach like this – always use your ears as a guide for what sounds good and what doesn’t.

.

The Quiz:

Did you notice anything about the C major voicings?  Using a B minor triad doesn’t take it to the 13th.

.

In any chord tone voicing, raising the 5th a step gives you the 6th (if no 7th is in the chord) or  (in this case) the 13th  So using our initial voicings, the easiest way to bring in the 13th is to raise the G on the high E string to A.

.

B min 7 / C Implying C maj 13 (#11)

.

.

Looking at at a little deeper,

if we fully spell out this chord:

  • C (root)
  • E (3rd)
  • G (5th)
  • B (7th)
  • D (9th)
  • F# (#11) and
  • A (13)

.

the top 3 notes form a D major chord.  As a modified rule for playing over a major chord:

.

  • Playing a minor chord (or arpeggio) a 1/2 step below a major triad implies a Lydian sound by giving you upper chord tensions (7, 9 and #11) of that major chord. (i.e. B minor/C).
  • Playing a major chord (or arpeggio) a step above a major triad also implies a Lydian sound by giving you the upper chord tensions (9, #11 and 13) of the minor chord. (i.e. playing D/C).

.

As with any material here, pay attention to the 3 T’s (Timing, (hand) Tension and Tone) and just go through the lesson at your own pace and return to it as you need to.

.

I hope this helps and as always, thanks for reading!

.

-SC

.

P.S. If you like this post – you may also like:

.

MAKING MUSIC OUT OF SCALES

SOME USEFUL ONLINE PRACTICE TOOLS

.

GETTING HIPNESS FROM A MAJOR TRIAD OR MORE CHORD RECYCLING PART 3

GETTING HIPNESS FROM A MAJOR TRIAD OR MORE CHORD RECYCLING PART 2

GETTING HIPNESS FROM A MAJOR TRIAD OR MORE CHORD RECYCLING PART 1

.

GETTING THROUGH THE GIG – NEGOTIATING A CHORD CHART PART 3

GETTING THROUGH THE GIG – NEGOTIATING A CHORD CHART PART 2

GETTING THROUGH THE GIG – NEGOTIATING A CHORD CHART PART 1

.

RECYCLING CHORDS PART II: TRIAD TRANSFORMATION

RECYCLING CHORDS PART I OR WHERE’S THE ROOT?

.

FAVORED CURRY OR SPICING UP CHORD SCALES AND TRIADS PART 2

FAVORED CURRY OR SPICING UP CHORD SCALES AND TRIADS PART 1

A BRIEF THOUGHT ABOUT MUSIC THEORY

.

Recycling Chords Part I or Where’s The Root?

Posted on by
Reply

I’d like to start this brief series off with an explanation of how I view the function of theory.

(For those of you who are interested, this is taken from, A brief thought on Music Theory.)

“Theory is secondary to sound.

The history of music originates in organized sound.  Theory and jargon were developed over time as a way to replicate those organized sounds.  When a term like “C major” is used, it tells the informed person what kind of sound is going to be produced. This jargon then, is nothing more than a way for musicians to express ideas to each other without written music in a more efficient manner.

It’s much less important to be able to look at something and say, “that’s an altered dominant chord” than it is to hear an altered dominant chord in your head and be able to realize it on the guitar (or to hear someone else playing it and know what to play against it).”

This series of lessons are excerpts from the Guitarchitect’s Guide to Modes: Major Harmony book (due out in 2012).  While that book covers basic intervals and chord theory, this lesson will make the most sense if  you have some knowledge about chords, intervals and chord construction.  Having said that, even if you have a very limited knowledge of these areas you can still get something from this lesson by playing through the examples.

When I was at Berklee, one of the recommendations I got was to learn a minimum of two voicings for every chord type I came across (and more if possible).  While this is certainly a valid point – another way to approach learning new voicings is to reconceptualize what you already know. To see other ways of looking at things in this case, I’ll need to bring in a little music theory/analysis.

.

When is C, E and G something other than C Major?

In order to identify a chord, we first have to establish the root to determine the functions of the other notes in the chord.

For example, if we look at the notes C, E, and G with C in the bass we get a C Major chord.

However if E is the root of the chord – it’s possible that the chord could be analyzed as an E minor with an added flat 6th and no 5th.

While you may hear this combination of notes as come kind of E minor chord, you are more likely to hear it as a C major triad with E in the bass.  The sound of a major triad is so entrenched in the average listener ’s head that it will be very difficult to hear this specific combination of notes as anything other than C major.

This is sometimes written as C/E.  This chordal notation is commonly called a slash chord and is written in the format of chord/bass note.

The same is true for the next example.  If G is the root of the chord – the chord could be analyzed as a G sus4 add 6 (no 5).  But more likely you will hear it as C/G.

Let’s add a note outside of the triad to the chord.  By putting an A in the bass, the chord spelling is now A-C-E-G (which is an A minor 7th chord).

Just because you have 3 notes doesn’t mean that you’re limited to a specific chord type.  In other words the notes C, E, and G are sometimes more than a C Major chord.

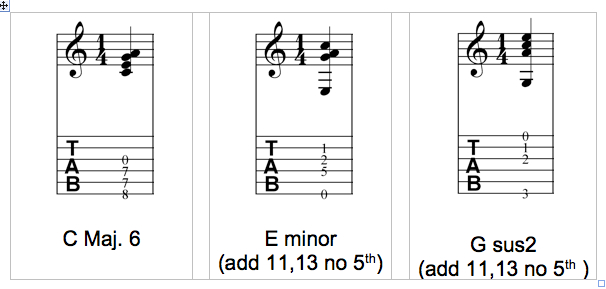

Using the same process as above the collection of notes above could also be analyzed as:

.

Converting to C

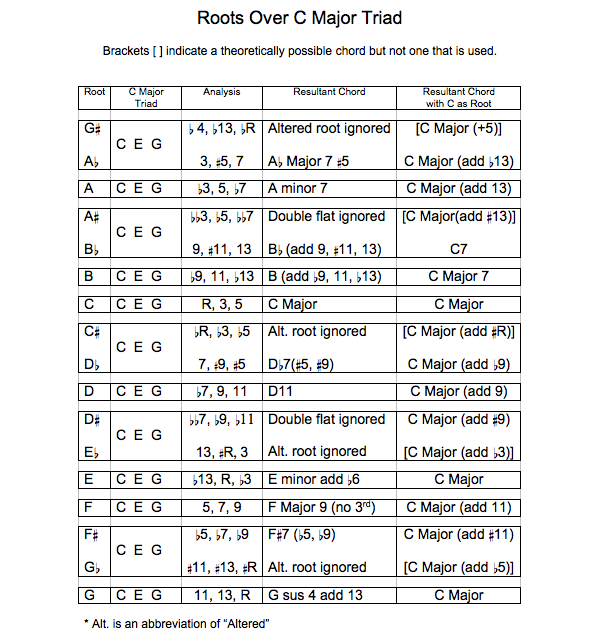

Let’s now look at how a C Major triad can be analyzed over every other root.

A quick theory tip:  Whenever I see chord or a scale that I’m having trouble recognizing, I recommend modulating it to the key of C.  The reason for this is the lack of sharps or flats make any accidentals immediately identifiable.

Here are a couple of points regarding this:

  1. There are several ways that these chords could be interpreted and that this is merely my analysis.
  2. The Analysis column is analysis in relation to the root.  For example, the C of a C major triad is a b4 over a G# root.
  3. The resultant chord column has an implied analysis.  For example the D11 derived from a C major triad over D is more accurately a D11 (no 3rd, no 5th add 9).
  4. Some of the voicings presented are theoretical voicings and not something you find on a chord chart.  For example: C7 is a much easier voicing to conceptualize than C Major (add #13) and I have yet to see a chord chart with C Major (add #13) on it.)  Ditto for altered roots.

.

Putting the Theory into Practice

Let’s say I’m playing a song that uses a major chord and I want to spice it up.

In looking at the above chart, I see that utilizing a C major triad over a Bb could be seen as a C7 chord with the 7 in the bass (C/ Bb ) or it could be seen as a Bb chord with every upper chord tension.

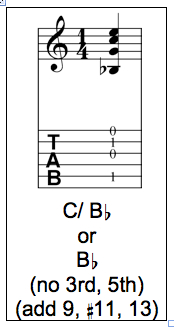

Here’s a voicing in open position.

Now let’s make this a movable voicing.

Let’s begin with a 1st position C major chord

and a 1st position D major chord

Keeping the root and the 3rd of the C major, we’ll use all the rest of the notes of D major:

and we get a really rich sounding substitution for a C major chord.

.

Next steps

This chord merely scratches the surface of this approach.

In addition to making some new chords from familiar voicings (i.e. Ab maj7#5 = C major /Ab), you also get some improvisational approaches as well (for example – as a starting point for soloing over a Ab maj7#5 you could play a C major arpeggio rather than learning a maj7#5 arpeggio).

For now, I would recommend exploring these sounds both as chords and as an arpeggio approach (i.e playing a C major arpeggio over each root) to see what sounds work for you and then adapt those to other keys.

Additionally, this process can be applied to any chord.  If you feel like exploring this approach – C minor might be a good place to start.

In part II of this series, I’ll discuss a process I call triadic transformation as another way to reconceptualize chords that you already know.

.

In the meantime, just remember that there isn’t anything here to get too hung up about.  Take the sounds and approaches that work for you and discard the rest.

I hope this helps!  You’re free to download and distribute any of the lessons here but I maintain the copyright on the material. I’m always looking for feedback, so if you have any questions or comments, please feel free to e-mail me at guitar.blueprint@gmail.com.
